Teco - Diesel Grain Dryer
From Grain Dryer
Diesel Grain dryers which are manufactured by our company is divided into various models in terms of shape and quality. Dryers which is operating with gas type fuel, LPG,CNG,LNG and NG. Dryers which is operating with liquid fuel.. Diesel, motorin, fuel oil type fuels.
-
Most popular related searches
Products Details

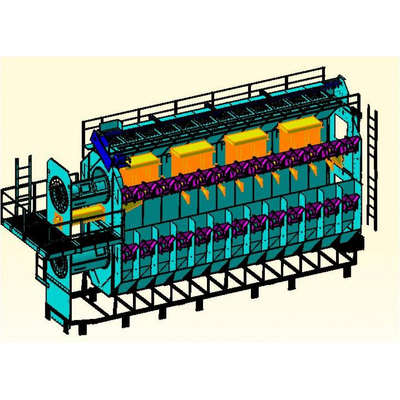

HorizontalTypeGrainDryers
- Dryerswhich is operatingwithgastypefuel, LPG,CNG,LNGandNG
- Dryers which is operating with liquid fuel
- Diesel, motorin, fuel oil type fuels
- Model soperating wit hwatervapor
- Indirect type dryer with liquid fuel
Tower type dryers
- Direct heating tower type
- Laterna type tower type
Diesel drying machines manufactured by our company is indirect driers class Production of environmentally-sensitive Does not include any feature harmful to human health
Production of hot air with indirect air heater
Indirectly air heater is occurs in a closed environment (in the combustion chamber) Against losses includes an intermediate body, gas transfer and high heat-resistant steel in a closed combustion chamber, arranged that the flow in the body
Heating energy transmitted in here
Only heat exchanger closed combustion chamber surfaces, and above fresh air and gas passesHeat from the combustion gases is thrown into the open air through a chimney Thus,hot air doesn t include flue gas
Why diesel grain dryers ?
- Everywhere there is electricity, provides the opportunity to drying
- You can find fuel in machine for heating anywhere and anytime
- Diesel burner maintain is easy That s why maintenance can be done easily if desired
- Diesel burner components shall be easily everywhere
- Provides excellent drying because heat does not directly touch with products
- Due to the closed combustion chamber, soot-smell and so fuel waste does not transmitted on the product
- Because it is outside the burner allows ease of maintenance
- Considered all kinds of safety with platforms It is provides service maintenance safety
- Despite burner unit the above, the control unit is down And this provides starting procedure without going up
The Operator Panel is outside of the machine and it is allows processes to be make below unless there is a fault in any situation, cuts the relationship between the machine and the operatorIn case of failure to cut below the energy of the machine
Operator control unit designed that the operator can stand as a healthy observation and work
Diesel burner outer side of the machine and technical service is easily done Output is possible from both sides
TECO GROUP OF DIESEL HEATER
BURNER
DIESEL BURNER DESIGNED TO BE USE OF THE PLACE TO BE IN DIESEL FUEL
BURNER SYSTEM CAN WORK WITH DIESEL, LPG OR NATURAL GAS ACCORDING TO CUSTOMER DEMAND FOR
DIESEL AND GAS BURNER WORK WITH BOTH WITH NATURAL GAS AND DIESEL FUEL
THIS SYSTEM CAN WORK WITH GAS BURNER, NATURAL GAS AND LPG
- BURNER FRONT FLAME COMBUSTION CHAMBER 1500 MM LENGTH, R 270 DIAMETER
- FLAME-BREAKER AND HEAT SHIELD
- AVAILABLE AT THE BOTTOM OF STEAM COIL
- HEAT TAKING SERPANTINES
- HEAT TAKING SERPANTINES
- HEAT TAKING SERPANTINES
- OUT CHIMNEY
MACHINE SETTLEMENT POINT OF THE HEATER BURNER
TWO-STAGED BURNER
Electric control panel is on the burner; Siemens control relays are used
OPERATING PRINCIPLE OF THE WORKING WITH THE INDIRECT HEAT SYSTEM GRAIN DRYER MACHINE
OPERATING PRINCIPLE OF THE WORKING WITH THE INDIRECT HEAT SYSTEM GRAIN DRYER MACHINE
I WHEN THE BURNER START THE OPERATION, THERE ARE FIREWALL FOR ABSORBING THE FLAME IN THE PART OF NO2 WHILE PASSES FROM 2 TO 3 FLAMELESS HEAT MOVES IN THE DIRECTION OF THE ARROW, 1 STAGE ENTERS TO THE SERPANTINE NO3 SO, FIRSTLY ABSORB THE RELEASE OF HIGH TEMPERATURE 'CrNi 430 STEEL USED IN THIS SECTION 4-5-6 NO SERPENTINES ARE HEAT RESISTANT STEELHEATED AIR MOVES BETWEEN 1 - 7 AND HEATS THE SERPENTINES
HEATED SERPENTINES ON THE HEAT IS TAKING THROUGH FANS AND USED FOR HEATING ON HUMIDITY PRODUCT CONSISTING OF THE CLOSED SYSTEM SMUTS, SMELL AND SIMILAR ARTICLES, THROWN DOWN TO EXTERNAL ENVIRONMENT FROM 7 NUMBER CHIMNEY HEAT LOSSES ARE VERY LOW AND PRODUCTIVITY HIGH BECAUSE THE SYSTEM IS IN THE MACHINE
01 – HEATER BURNER DIESEL OR DIESEL GAS FUEL BURNER TYPE PRICED ACCORDING TO CUSTOMER DEMAND
Air flow through grain
The more air you can blow through grain the more quickly grain will dry and cool, TECO dryers have high capacity fans in relation to the size of the dryer which speeds up drying and cooling decreasing batch time and increasing throughput
Heating the grain
Larger burners attain the drying temperatures more quickly and maintain more consistant drying temperature, decreasing drying time and increasing throughput
Simle to set up, operate and monitor
TECO Dryers use robust 3 phase electrics to control the drying operation, these are powered by the three phase supply or an on board generator in the case of PTO models The operator has simple digital temperature sensors to set and a push button system to start the drying process The Control system incorporates a high heat cut out as a safety measure in case of a failure
Size of the drying zone
The size of the plenum chamber in a grain dryer dictates the amount of grain that is being dryed at any one time The holding capacity of a grain dryer is irrelevant to the drying capacity, the larger the plenum area, the higher drying capacity (See image)
Reduced Diesel usage and clean, reliable drying
All TECO Dryers are fitted with a Heat core, this uses heat retaining bricks similar to those in a storage heater to retain heat and heat the air aswell as the heat directly from the burner Inside the burner chamber is a steel barrel which is lined with heat bricks, as the bricks build up temperature they heat the air that is being drawn past them so that when the burner switches to low flame the temperature does not drop as quickly This ensures an even consistent drying temperature
Efficient Low Level Burner
Large Axial Fans
Quiet, fast DryingQuiet, fast drying
We have over specified the fan size on all the Magna range as airflow is important in dense crops like rape and the higher the airflow in any crop the faster a batch will dryer
We have over specified the fan size on all the TECO range as airflow is important in dense crops like rape and the higher the airflow in any crop the faster a batch will dryer All fans fitted to Dryers are centrifugal minimising noise output and meaning that they can be used in sensitive areas
Clean, efficient drying and ease of servicing
TECO Dryers have been designed to keep the burner within easy reach of the operator so that it is accessible for servicing and easy to setup The burner is a modern efficient Diesel burner that can also run on Kerosene and it incorporates a flame sensor to ensure that the diesel is cut off if the burner goes out
Evenly dried grain Evenly dried grains
The Heavy Duty Agitator ensures that even the wettest of crops continually recalculates and mixes so that a homogenous dry sample is produced at the end of the cycle
Evenly dried grain Evenly dried grains
The Heavy Duty Agitator ensures that even the wettest of crops continually recalculates and mixes so that a homogenous dry sample is produced at the end of the cycle
Faster drying process
All TECO Dryers are specified with high capacity loading, recirculating and unloading augers in order to load, dry and unload the grain more quickly
Longevity
The TECO range uses stainless steel inner and outer screens to prevent corrosion and increase the life of the machine
Put you in control of your harvest whatever the weather
Why get caught out by another wet harvest when TECO Grain Dryers have the solution
Easy to install and relocate when necessary, TECO Grain Dryers do not require vast expenditure on handling equipment and can easily dry up to 480 tons per day automatically, with minimal supervision
Using diesel or gas and with 3 phase or PTO drive TECO dryers recirculate the grain constantly to dry thoroughly and consistently whilst improving hectolitre weights and augmenting quality
