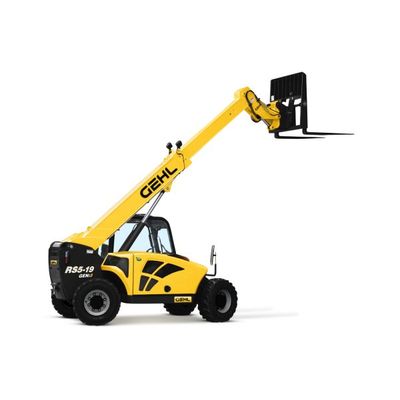

Gehl - Model RS5-19 GEN:3 -Telescopic Handler

Performance

The RS5-19 GEN:3 is built to work hard.

• Compact size 5` 11" wide & 6` 4" tall
• Total weight of 10,000 lbs
• With a ground clearance of 14"
• Two section telescopic boom has full hydraulic power for all lift and telescopic functions
• Hydraulic self-leveling lift action automatically keeps the load level as the boom is raised.
• Inboard wet-disc service brakes
• Limited slip differential is located on front axle.
• Highly visible boom level indicator is located on the outer boom and an easy-to-read frame level gauge is located in the cab
• System Pressure (bar) : 3,350 psi (231)
• Hydraulic System Total Capacity (L/min) : 20 gpm (83)

Operator`s Cabin

The operator’s cab in the RS5-19 GEN:3 Telescopic Handler is anything but compact. A modern, ergonomic design maximizes comfort.

• High-back seat with right-side adjustable armrest; suspension seat optional.
• Locking storage compartment under seat.
• Full 360° visibility.
• Ergonomic design features all gauges, indicator lights and switches on the right-side dash panel
• ROPS/FOPS canopy standard; ROPS/FOPS cab with heater  or ROPS/FOPS cab with heater & A/C optional

Handling

To enhance maneuverability, the RS5-19 Telescopic Handler has three steering modes. An operator can change between 2-wheel, 4-wheel and crab-type steering by flipping a switch in the operator’s station.

Engine

The RS5-19 GEN:3 Telescopic Handler has the power to get work done effectively and efficiently.

• Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for repair.
• Rexroth 2-speed hydrostatic transmission.
• Limited-slip differential in the front axle provides additional traction in muddy and unimproved surfaces.
