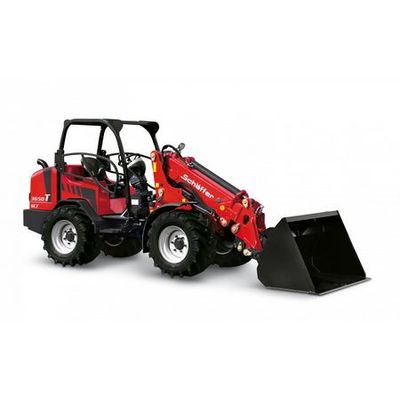

Schäffer - Model 3650 T SLT -Telescopic Wheel Loader
Special low construction design. 3-cylinder diesel engine Kubota D1803-CR-T, 37 kW (50 HP). DOC and DPF for compliance with Stage V emissions standards. Hydrostatic four wheel drive with automotive control.
Most popular related searches
- High-pressure drive HD-plus
- Tyres 15.0/55-17 AS, offset +85
- HTF (High Traction Force)
- SPT (Schäffer Power Transmission)
- ECO Mode
- Hydraulic quick gear 20 km/h switchable under load
- Original Schäffer axles, wide design, 6 hole
- Ferro-form sliding elements in the telescopic arm
- Tool cylinder in the telescopic arm
- Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
- Combined oil cooler
- Multiple disk brake, maintenance free; service and parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Z-bar boom with parallel lift
- Working hydraulics: 51 l/min
- Driver-on-board switch
- Adjustable steering column
- Hour meter, rev counter, fuel control lamp and temperature indicator
- Rear weight end plate and towing hitch
- Counter weight 110 kg mounted under rear chassis
- Wide chassis
- Headstock type wheel loader with hydraulic tool lock
- Engine
- Type: 3-cylinder diesel engine Kubota D1803-CR-T
- Output: 37 kW (50 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
- Tyres
- Standard tyres: 15.0/55-17 AS, ET+85
- Option I: 425/55R17
- Option II: 440/50-17
- Option III: 33x15.5-16.5 SKD, ET+35
- Electric system
- Operating voltage: 12 V
- Dimensions
- (A) Wheelbase: 1,920 mm
- (B) Chassis length: 4,070 mm
- (C) Overall length with standard bucket: 4,835 mm
- (D) Digging depth: 150 mm
- (E) Reach: 1,980 mm
- (F) Swivelling point, telescopic arm retracted: 3,180 mm
- (G) Loading height with pallet forks: 3,580 mm
- (H) Max. dumping height: 3,010 mm
- (I) Front end height: 1,600 mm
- (J) Dumping width: 890 mm
- (K) Seat height: 1,080 mm
- (L) Protective roof height: from 2,100 mm
- (M) Max. bucket pivot point: 3,850 mm
- (N) Overall width / option: 1,420 / 1,510 - 1,730 mm
- (O) Inner turning radius: 1,290 mm
- (P) Outer turning radius: 2,710 mm
- (Q) Outer radius with standard bucket: 3,060 mm
- Drive
- Traction hydraulics: Hydrostatic-automotive
- Speed / option: 0 - 20 kph in 2 gears switchable under load / 0 - 30 kph
- Axles / option: Original Schäffer axles, 6-hole rim; Option: automatic slipcontrol differential
- Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated pendulum steering
- Tank capacity
- Fuel: 55 l
- Hydraulic oil: 48 l
- Working hydraulics
- Delivery rate: 51 l/min
- Operat. pressure: 220 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 3.700 kg
- Lifting capacity: 1.950 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 1.710 kg
- Sounds and vibration
- Sound pressure level LpA: 84 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
