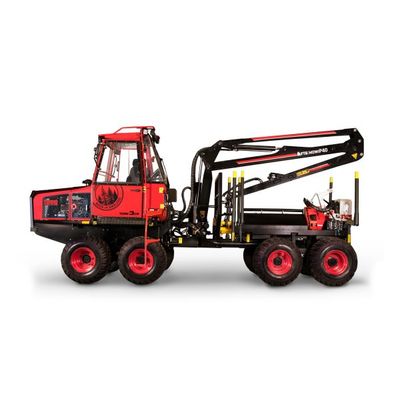

Are you looking for variety when working in the forest? Terri 3CW is a powerful combi machine that switches from harvester to forwarder and vice versa in just 15 minutes. It is therefore ideal if you need an efficient forestry machine with the greatest flexibility. Harvesting and forwarding with the same machine provides both time efficiency and financial benefit. It could not be easier.
The machine has a fantastic ability to negotiate difficult terrain. Eight wheels ensure high degree of ground contact, which is ideal for both traction and driver comfort.
All wheels are drive wheels, which provides major benefits in terrain that is hilly or has low bearing capacity. When driving over logs and rocks, the experience in the cabin is less bumpy and rough thanks to the fact that it rests on double pairs of wheels
The stability is extremely good, whether you are harvesting or forwarding. This is down to the powerful midjoint lock, which ensures stability during crane work. Terri 3CW is a machine to thrive in, both when driving and when working, in all seasons.
Engine
- Diesel engine:CAT 3.6
- Power:55,4 kW
- Number of cylinders:4
- Torque:424 Nm/1 200 rpm
- Diesel tank volume:100 l
Transmission
- Transmission:Fully hydraulic
- Max. steering angle:45º
- Gears:1, 2, 3 & reverse
- Max. speed:13/18 km/h
- Wheel dimension:500/50 x 17
Hydraulic system
- Hydraulic system:Danfoss
- Tank volume:120 l
- Pump capacity:115 cc
Electrical system
- Electrical system:24 V
- Battery:2x12 V / 100 Ah
- Generator:100 A
Crane
- Crane:Mowi
- Model:P40
- Lifting torque:37 kNm
- Slewing torque:12 kNm
- Slewing arc:360º
- Reach:6,2 m
Harvester head
- Harvester head:Log Max
- Model:LM 2000T
- Feed rate:3,1/4,0 m/sec
- Feed force:14,9 kN
- Number of feed wheels:2
- Max. opening:330 mm
Chassis
- Service weight:8 300 kg
- Length, standard:6 600–7 200 mm
- Width:1980 mm – 2050 mm
- Highest height:3 100/3 180 mm
- Ground clearance:700 mm
- Loading area:2,45 m2
- Loading capacity:6 tons
