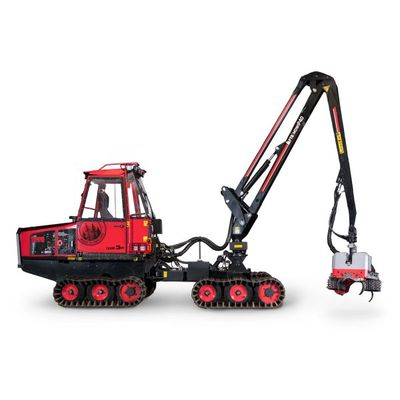

Do the conditions make a good job unlikely? Then it is time to call in the expert! Accessibility, comfort and flexibility are just three words that are synonymous with Terri 3HT. It thrives with first and second thinning and when driving on sensitive ground. Thanks to its first-rate range, it does a perfect job even when the terrain is uncompromising.
Both the driving and working experience are important to us. That is why we have equipped Terri 3HT with Mowi P40, a powerful crane that ensures a range of just over six metres. This really makes the work easier in dense and unforgiving terrain.
When you step into a Terri 3HT you will experience the comfort: an airy, spacious cabin that are equipped with technology and amenities adapted for long working days.
Our machines are delivered with the latest technology. With a Terri 3HT, there are several different equipment levels to choose from. Are you looking for a flexible, easily manoeuvrable harvester with optimal performance? Then look no further than a Terri 3HT!
Engine
- Diesel engine:CAT 3.6
- Power:55,4 kW
- Number of cylinders:4
- Torque:424 Nm/1 200 rpm
- Diesel tank volume:100 l
Transmission
- Transmission:Fully hydraulic
- Max. steering angle:45º
- Gears:1, 2 & reverse
- Max. speed:11 km/h
- Track width:490 mm
Hydraulic system
- Hydraulic system:Danfoss
- Tank volume:120 l
- Pump capacity:115 cc
Electrical system
- Electrical system:24 V
- Battery:2x12 V / 100 Ah
- Generator:100 A
Crane
- Model:Mowi P40
- Lifting torque:37 kNm
- Slewing torque:12 kNm
- Slewing arc:220º
- Reach:6.2 m
Harvester head
- Model:Log Max LM 2000T
- Feed rate:3.1 / 4.0 m /sec
- Feed force:14.9 kN
- Number of feed wheels:2
- Max. opening:330 mm
Chassis
- Service weight:6600 kg
- Length, standard:5700 mm
- Width:Front 1900 mm, Back 2200 mm
- Highest height:2900 mm
- Ground clearance:400 mm
