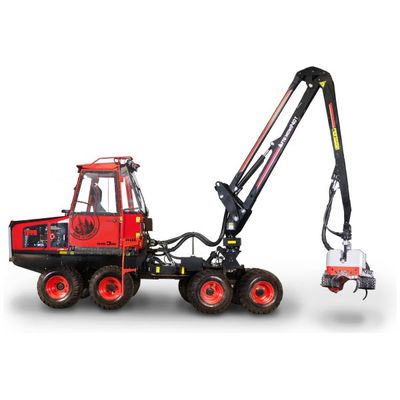

Flexibility is fundamental when it comes to stand-operative thinning. Terri 3HW is the ultimate forestry machine that performs best even in the most challenging conditions. An elite level of cabin comfort, high ground clearance and world class traction and bearing capacity are just some of the benefits of this fearless and powerful workhorse.
The ground clearance is an incredible 70 centimetres, providing fantastic surface negotiability even over rocky or hilly terrain. Thanks to the eight wheels, all of which are drive wheels, a high degree of ground contact is also ensured, which optimises traction and driver comfort. Because the cabin rests on pairs of double wheels, this also means a less bumpy and rough driving experience.
Add to this a spacious cabin equipped with the very latest technology. A strong Cat engine of 3.6 litres and the option to choose between the cranes Mowi P40 or Mowi P40T with a strong unit from Log Max.
At Terri we want your work shift to be comfortable. Which will be the case with this powerful harvester.
Engine
- Diesel engine:CAT 3.6
- Power:55.4 kW
- Number of cylinders:4
- Torque:424 Nm/1 200 rpm
- Diesel tank volume:100 l
Crane
- Model:Mowi P40 / P40T
- Lifting torque:37 kNm
- Slewing torque:12 kNm
- Slewing arc:220º
- Reach:6.2 / 7.5 m
Transmission
- Transmission:Fully hydraulic
- Max. steering angle:45º
- Gears:1, 2, 3 & reverse
- Max. speed:13/18 km/h
- Wheel dimension:425 alt 500/50 x 17
Harvester head
- Model:Log Max LM 2000T
- Feed rate:3.1 / 4.0 m /sec
- Feed force:14.9 kN
- Number of feed wheels:2
- Max. opening:330 mm
Hydraulic system
- Hydraulic system:Danfoss
- Tank volume:120 l
- Pump capacity:115 cc
Chassis
- Service weight:7500 kg
- Length, standard:5800 mm
- Width:1980 mm – 2050 mm
- Highest height:3100 / 3180 mm
- Ground clearance:700 mm
Electrical system
- Electrical system:24 V
- Battery:2x12 V / 100 Ah
- Generator:100 A
