DASH - Test System

• 12V or 24V controllers supported
• Simulate up to 16 analog voltage sensors and 32 digital switches
• Measure up to 16 PWM duty cycles and digital output states
• Included harness is designed for your target controller
• Supports STW & Danfoss Plus+1 ECUs up to 50-pins
• Low lead time to customize the system for your controller

• Easy Setup No coding required
• Reduced Effort No rewiring for new tests
• Lower Costs Avoid on-machine software support time & costs
• Repeatable Tests Save machine test profiles for future use
• Quick Feedback Ability to test software at engineer’s desk
• Isolate Root Cause Remove wiring & hydraulics as variables
• Portable Troubleshoot on-site with prototypes

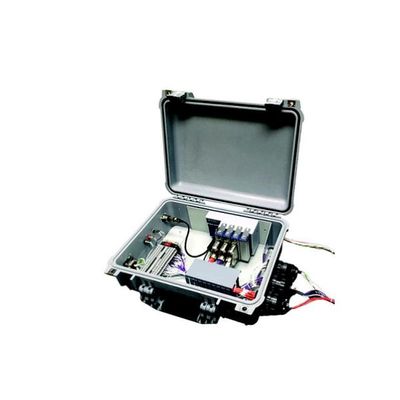

The Dash Test System is a low-cost turnkey functional tester for ECU software development. The unit provides a platform to interact virtually with vehicle hardware. It replaces many unwieldy, unmaintainable test harnesses with a single hardware interface. Users can save time and money by testing multiple machines with a single hardware package and software defined profiles. It can also improve teamwork and consistency by re-using and sharing these profiles!

• Support for different controllers
• Development of additional features
