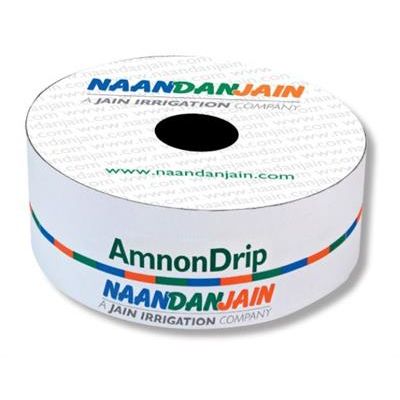

NAAN AmnonDrip - Model PC, CNL & PC AS - Thick-Walled PC Flat Dripline

SHARE

AmnonDrip PC, CNL & PC AS THICK-WALLED PC FLAT DRIPLINE. Innovative, pressure-compensating (PC), dripline with special anti-syphon (AS). and compensating non- leakage (CNL) models. Cascade labyrinth feature incorporated in all drippers.

Most popular related searches
underground drip irrigation
flat dripline
drip irrigation
field crop
dripline
greenhouse system
underground irrigation
root intrusion
pressure compensating dripline
dripline flat
  • Ideal solution for irrigation in topographically challenging terrain, and where long laterals are required
  • CNL option for pulse irrigation of orchards, open field crops and greenhouses
  • Subsurface Drip Irrigation (SDI), for accurate irrigation of orchards, open field crops and greenhouses
  • Pressure- compensating (PC) enabling water application accuracy at variable topography and the installation of long laterals
  • Efficient self-cleaning turbulence provided by the Cascade labyrinth
  • Hydrodynamic dripper design ensures continuous flushing of sediments and small dirt particles
  • Low CV for maximal uniformity
  • Weir structure improves root intrusion resistance and sand suction
  • 3D water inlet structure improves clog resistance
  • High-quality silicon diaphragm
  • Both carton and coil package options are available (see packing and shipping table)
  • Colored cap facilitates easy identification of dripper models
  • CNL: Pressure-compensating non-leakage design reduces lateral filling time and facilitates pulse irrigation
  • PC AS: Pressure compensating anti-syphon design prevents suction at draining stage. Suitable for subsurface drip irrigation
  • Flow rates: 0.5, 1.1, 1.6, 2.0, 2.2, 3.8 l/h
  • CNL: Opening pressure – 1 bar Closing pressure – 0.2 bar
  • AS: Opening pressure – 0.5 bar
  • Pressure regulating range: PC & AS models – 0.5-4.0 bar, PC CNL – 1.0-4.0 bar
  • Recommended filtration: 130 microns (120 mesh)
