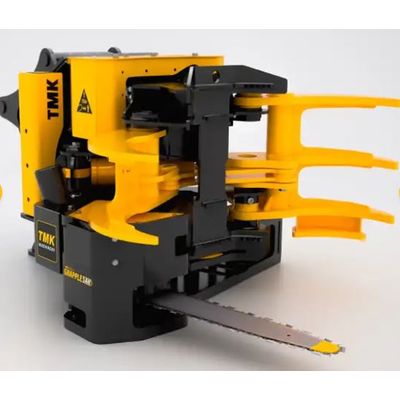

TMK - Grapple Saw
A powerful Grapple Saw for all your forestry needs. Strong grapples, Quality JPS Saw Unit, Strong frame and optional Rotator!
- Cutting capacity : Saw: 650 mm
- Hydraulic tree shear blade: up to 150 mm
- Weight : 850 kg without Rotator 990 kg with Rotator
- Chain options : .404” or 3/4"
- Guide bar size : 800 mm
- Grapple opening : 1190 mm
- Recommended pressure :
- Without Rotator: 200-300 bar
- With Rotator: 210 bar
- Oil flow :
- Without Rotator: 80-150 l/min
- With Rotator: 80-150 l/min
- Material : Hardox® steel
The frame is designed to withstand the vast forces that excavators create. The back of the Grapple Saw has a sturdy heel that can be used to take support with the excavator.
The frame is made from Hardox® 400 and 500 steels, which are known for their wear resistance and durability.
Saw unitThe TMK Grapple Saw uses a quality Swedish JPS saw unit, which features a 800mm saw bar with a .404” chain, with the ¾” option also available. The saw bar has an automatic lubrication system.
The unit features a electronically controlled chain tightening system. This system makes sure that the chain doesn`t get pulled out of the bar if the saw bar gets pinched while it retreats to the saw box after the cut.
The dual grapple arms open to a maximum width of 1190mm for easy material handling. They also close in tight, for grabbing smaller trees.
The arms can also be electronically locked in place for trickier sawing motions, for example to keep the grapples from closing too tight when cutting a bundle of trees.
Very sturdy saw boxThe saw unit is very well protected inside a sturdy saw box. We have also made cut outs to the saw box so you can see exactly where the bar is when cutting, and it also has a bolt attached cover for easier maintenance access.
The lubrication oil tank is built right on top of the saw unit and i
TMK Grapple Saw also features a Hydraulic moving cutting blade designed for cutting smaller branches and bushes.
Cutting capacity: 150 mm
t is pressurized to help keep it going in different situations. We have also protected the pressurized cap with an easily removable cover.
