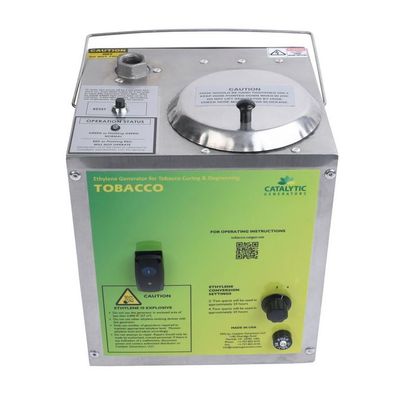

Catalytic Generators - Tobacco Curing Ethylene Generator
With its portable design, The Tobacco Curing Generator can be shared between as many as six curing systems
Advantages:
Produces consistent, non-pressurized and safe ethylene levels to enhance the cure
No mixture with inert gas is needed as our system is inherently safe
Easy to make only as much ethylene as needed for the target barn, no need to store large quantities of compressed gas on site
There are no residues as a result of our ethylene application
Adjustable ethylene output allows for adaptation to any ethylene PPM requirement and any barn size
TÜV SÜD, Z1A 06 05 26083 001
73/23/CEE: EC Low Voltage Directive
89/336/EEC: EC Directive of Electromagnetic Compatibility
Voltage:
230 VAC/0.66 AMP/160 W/50-60 Hz with power plug type European CEE 7-7 (Other types available upon request)
120 VAC/1.33 AMP/160 W/50-60 Hz with power plug type North American NEMA 5-15 (Other types available upon request)
Tank Volume: Holds 2.5 Liters
Ethylene Output: Approximately 0.386 m3 / 13.63 ft3 of ethylene will result from the conversion of one liter of Ethy-Gen® II in a minimum period of 6 hours.
Operation Indicators:
Monitoring of ethylene conversion with highly visible light indication showing the operation status of the unit; a green light makes it clearly evident of ethylene production, or a red light will provide an alert in the rare occurrence of a malfunction.
Placement:
Place on floor or request optional wall-mount system.
Barn furnace room is the usual location. For more details, see this page.
??????” H X 9.25” D X 9.5” W —— 31 CM X 24 CM X 25 CM
??? Pounds —— ??? Kilograms
Warranty:
One (1) year warranty included. Extended warranties available.
