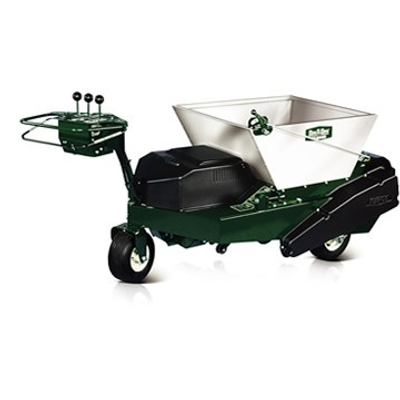

Ransomes - Model Turfco - F15B Mete-R-Matic -Top Dressers
The Turfco F15B Mete-R-Matic`s light footprint is perfect for new or refurbished greens where other turf maintenance vehicles may be too heavy. Finger tip operator controls give access to forward, reverse, brakes and throttle.
- Patented chevron surface conveyor gives lighter, more consistent application.
- Ensures even application of dry and wet materials.
- Galvanised hopper ensures no rust forms on the hopper which would block material flow.
- New controls have been mounted to the handle bar for added convenience.
Power
Engine Honda, 4-stroke, petrol engine
Starting System Recoil starter
Power 5.5 hp
Drive Train
Drive V-belt from engine, roller chain and gear drive to conveyor, traction and brush
Transport Speed Up to 2.5mph
Top Dressing Speed Up to 2.5mph
Tyres
Five, 13 x 6.50 x ribbed turf tyres
Steering
Tiller steering with handlebars
Hopper
Capacity 11.5 ft³ filled at top of hopper
Size 34.5" x 39.5" at top tapering to 34.5" x 21.5" at bottom, 19.5" deep
Spread Width 31.5"
Conveyor Belt 35" wide composition belt with chevron surface and heavy-duty polyester cord
Metering Gate Fine adjustment to maximum 3" opening
Brush 9" diameter rotating polypropylene brush for uniform distribution
Controls
Throttle, traction, reverse, brake, engine on/off switch, conveyor drive and metering gatecontrols mounted on handlebars all within easy reach of operator
Empty Weight
650 lbs
