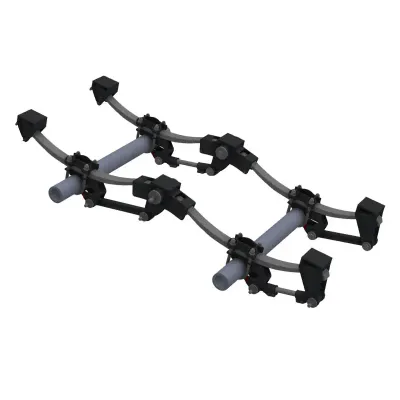

DistagQCS - Model RCO/RCU 076 -Torque Arm Suspension System

SHARE
The RCO 076 Torque Arm Suspension, a reputable solution for heavy-duty, high-speed commercial trailers, has been an industry standard for over 30 years. It is engineered with a robust cast steel construction, ensuring reliability and durability under demanding conditions. The system is designed to accommodate both over-slung and under-slung configurations, making it versatile for a variety of trailer types, such as grain, silage, dump, dolly bogies, bale, and livestock trailers. It features torque arms equipped with high-density poly bushes, which offer enhanced performance on rough terrains by providing stability and precise axle alignment control. Furthermore, it supports extended axle center lengths of up to 1850mm, catering to diverse capacity and stability needs. This makes the RCO 076 particularly suitable for applications requiring high-speed transit with large-capacity loads.
Most popular related searches
livestock trailer
bale trailer
grain silage
silage trailer
dump trailer
silage
livestock
grain dump trailer
grain trailer
silage baling
CAPACITY: 24,000Kg ~ 30,000Kg per tandem assemblyAXLE CENTER OPTIONS: 1310mm, 1360mm, 1540mm, 1850mmAXLE BEAM: Ø127mm & SQ150mmSPRING OPTIONS:
  • 3L * 76*24mm
  • 4L * 76*24mm
  • 4L * 76*24mm (Low-running)
  • 5L * 76*2mm Parabolic
  • 1L x 76*48mm
  • 1L x 76x42mm


RCO/RCU 076 TORQUE ARM SUSPENSION – COMMERCIAL OVER OR UNDER-SLUNG SUSPENSION:

Commercial Over or Under-Slung Suspension. Commonly applied to H/D Grain & silage Trailers, Dump trailers, Dolly Bogies, Bale Trailers & Livestock trailers.

DESIGN:

  • Cast Steel Hangers – Uniform & Robust.
  • Over-slung & Under-slung options
  • Torque Arm design with high-density poly bushes suitable for high speeds.
  • Tandem, Tridem and Single axle assemblies available.

The RCO 076 Mechanical suspension has been an industry standard bearer for more than 30 years, offering an ideal solution for heavy duty large capacity trailers travelling at high speeds. The cast steel construction insures a uniform, robust and high quality finish design, whilst the torque arm design offers support and axle alignment control suitable for high speed applications. Torque arms are assembled using high density poly bushes suitable for rough terrain applications. This suspension is available in Over-slung spring options to suit almost all capacity and stability requirements. In addition, the RCO 76 suspension is also available with extended axle centre length of 1850mm.
