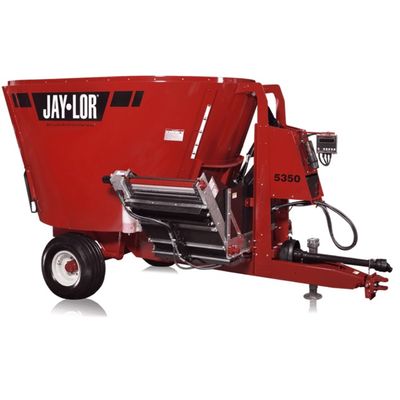

Jaylor - Model 5350 -Total Mix Ration (TMR) Single Auger
Our bale processing champion. Doesn’t matter if it’s baleage, long Bermuda grass hay, or corn stalks the patented square-cut auger in our 5350 will make short work of reducing the particle size and blending that 4×5 bale (or two 4x4s) with the rest of your ration. And in most applications, a 60 HP tractor won’t even snort.
Most popular related searches
total mix ration
vertical TMR mixer
TMR auger
shear bolt subsoiler
vertical TMR
TMR mixer
corn stalk
vertical auger mixer
single-auger mixer
tractor
- Square Cut Auger with Sloped Top
- Slide Plate Technology Tungsten Carbide Coated Knives
- Welded Mixing Chamber
- Shaker Box
- Mixer Level
- Mix Viewing Window
- 2 Restrictor Blades
- Reinforced Frame
- Rapid Discharge Door
- Galvanized Discharge Conveyor
- Heavy Duty Adjustable Cast Hitch
- Heavy Duty Hubs
- Heavy Duty Single Straight Axle
- Ladder and Platform
- 3 Point Weigh System
- Planetary Gearbox
- Easy View Oil Reservoir
- Shear Bolt Protection
- Angling Blade Auger
- Alexander Knives
- Vertical Knives Hay Ring
- Plastic Extension Upgrade
- Rear Door
- Corner Door
- Center Side Door
- Drop Floor
- 3′ Conveyor
- Door Chute
- Discharge Conveyor, Left or Right
- Dual Discharge Flat Conveyor
- Flip-Up Conveyor
- Discharge Magnet
- Rubber Flap
- Dual Conveyor Boot
- 15.0/55-17 26 PLY Tire Upgrade
- Fenders
- Road Light
- Battery Mount
- Safety Chains
- #8 Constant Velocity PTO
- 2 Speed Transmission
- Remote Transmission Shifter
- STAD 04 PLUS² Indicator Upgrade
- WIN SCALE² Indicator Upgrade
- TOP SCALE IC Indicator Upgrade
- Cab Remote Display
- Weight Repeater Remote Display
- Alphanumeric Remote Display
- Dina-Tel 2 for Full display
- Wi-Net Modem
- P2P Major Functions Remote
- Mixer Control by Office PC
- Software For Mixer & Feeding Management
- Motor Controller Automate Mixer Operation
- Sloped top Square-Cut Auger
- 3-Point Weigh System with DG500 Indicator
- Structurally Reinforced Frame
- Patented Open Loop Oil Reservoir
- Heavy Duty Single Straight Axle
- Mix Viewing Window
- Fully Welded Mixing Chamber
- Rapid Discharge Door with Self-Cleaning Tracks
- Included Shaker Box and Scale
- Mixer Level Indicator
- Capacity No Extension: 350ft³ | 9.9m³
- Capacity 8" Extension: 380ft³ | 10.8m³
- Capacity 12" Extension: 405ft³ | 11.5m³
- Capacity 16" Extension: 425ft³ | 12.0m³
- Weight: 7300lbs | 3300kg
- Height: 103in | 262cm
- Length: 201in | 511cm
- Drum Width: 91in | 231cm
- Pto Speed: 540 RPM
- Minimum Hp: 60 HP
- Auger Speed: 41 RPM
- Number of Knives: 9
- Auger Flighting Thickness: 5/8in | 16mm
- Max Discharge Height: 60in | 152cm*
- Conveyor Width: 36in | 91cm
- Door Opening Width: 42in | 107cm
- Floor Thickness: 5/8in | 16mm
- Drum Wall Thickness: 1/4in | 6mm
- Standard Tires: 12.5L-15FI LR ‘F’ (2)
- Wheel Assembly: Single Straight Axle
