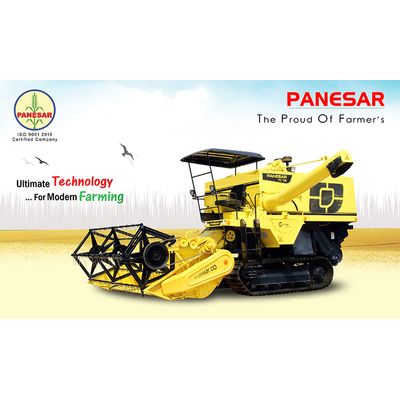

Panesar - Model TC 731 - Track Combine Harvester (Axial Flow)
The PANESAR Track combine (TAF) has revolutionized mechanized rice harvesting. The compact design and low weight make for good maneuverability in small fields. Reliable rubber tracks are ideal for rice paddies. As well as making harvesting quick and easy, the PANESAR Track (TAF) delivers excellent grain quality and negligible losses.
Engine: Ashok Leyland
Engine Model: ALUW-04D
Power: 76 BHP at 2200 RPM
No. of Cylinder: Four
Air Cleaner: Dry Type
Cooling System: Water Cooled
Structural Type: Axial Flow
TRANSMISSION / DRIVE: Hydrostatic Transmission comprising of hydracullic variable displacement, Double Pump and two fixed motors through double stage reduction.
CUTTER BAR MECHANISM
Cutter Bar Width: 2210 mm (7.25 Feet)
Cutting Range: 30 to 830 mm
Up / Down Control: Up / Down Control
Reel (Diameter x Width): 930 mm x 2120 mm
Reel Drive: Through V-Belt
Reel Up / Down Control: Hydraulic System
Feeder Housing: Chain Type
THRESHING MECHANISM (Double Drum)
Threshing System: Axial Flow
Threshing Drum Length: 585 mm, 1250 mm
Dia of Thresher Drum: 483 mm, 550 mm
Threshing Drum Speed: 750RPM, 800 RPM
CLEANING SIEVES
Upper Sieve: 495 mm
Lower Sieve: 1397 mm
ELECTRICAL SYSTEM: 12V, 120Ah Battery
GRAIN OUTLET
Discharghing Height: 2400 mm
Discharghing Length: 1950 mm
CAPACITIES
Grain Tank: 785 kg Paddy
Fuel Tank: 85 Ltr.
MAIN DIMENSIONS
Length (Including cutterbar: 5870 mm
Width: 2250 mm
Height: 2670 mm
Ground Clearance: 440 mm
Total Weight: 3870 kg. Approx
The PANESAR Track combine (TAF) has revolutionized mechanized rice harvesting. The compact design and low weight make for good maneuverability in small fields. Reliable rubber tracks are ideal for rice paddies. As well as making harvesting quick and easy, the PANESAR Track (TAF) delivers excellent grain quality and negligible losses.
