Dingo - Model TX 1000 - Track Loader, ...

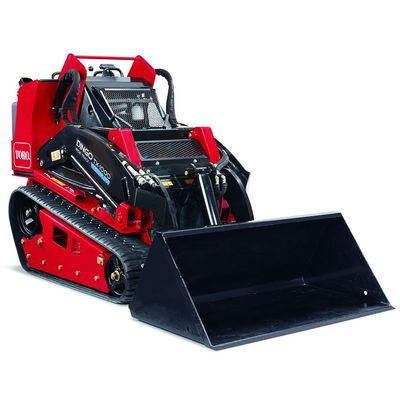

Dingo - Model TX 1000 -Track Loader, Wide

FromThe Toro Company

SHARE

Designed with vertical lift loader arms, its 1,000-lb. rated operating capacity delivers category-crushing performance that’s an industry game-changer. The Dingo TX 1000 also offers increased reach at full height for maximum jobsite productivity. And speaking of productivity, an 81" (206 cm) hinge pin height allows the arms to clear the side of a 30-yard dumpster or one-ton truck. This lightweight, maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage.

Most popular related searches

Class-leading rated operating capacity with 1,000 rated operating capacity
Maximum height and reach easily clears the side of a 30-yard dumpster
Compact footprint fits through standard 36" gates

Class-Leading Rated Operating Capacity

Vertical lift loader arms allow the Dingo TX 1000 to lift and transport heavy loads with a rated operating capacity of 1,000-plus pounds.

Maximum Height & Reach

The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.

Compact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Liquid Cooled

Displacement (cc): 1262

Displacement (cu. in.): 77

Dump Angle: 40 degrees

Dump Height (cm): 154.9

Dump Height (inches): 61

Engine Make: Kubota

Engine Model: D1305

Fuel Tank (gallons): 11.5

Fuel Tank (liters): 44

Fuel Type: Diesel

Ground Clearance (cm): 15.2

Ground Clearance (inches): 6

Ground Pressure: 3.6 psi

Ground Speed Forward (mph): 4

Ground Speed Foward (km/h): 7.6

Ground Speed Reverse (km/h): 7.6

Ground Speed Reverse (mph): 4

Hinge Pin Height (cm): 205.7

Hinge Pin Height (inches): 81

Hydraulic Flow: 13.3 gpm (each pump)

Hydraulic Flow Auxilary: 15.2 gpm

Loader Arms: Vertical Lift

Manufacturer`s Gross HP Rating (HP): 24.8

Manufacturer`s Gross HP Rating (kW): 18.5

Max Operating Height (cm): 266.7

Max Operating Height (inches): 105

Oil Capacity (liters): 5.7

Oil Capacity (quarts): 6

Overall Height w/bucket (cm): 135.1

Overall Height w/bucket (inches): 53.2

Overall Height w/o bucket (cm): 135.1

Overall Height w/o bucket (inches): 53.2

Overall Length w/bucket (cm): 255.7

Overall Length w/bucket (inches): 100.7

Overall Length w/o bucket (cm): 207.5

Overall Length w/o bucket (inches): 81.7

Overall Width w/bucket (cm): 104.1

Overall Width w/bucket (inches): 41

Overall Width w/o bucket (cm): 104.1

Overall Width w/o bucket (inches): 41

Rated Operating Capacity* (kg): 453

Rated Operating Capacity* (lbs): 1000

Reach – Fully Raised (cm): 62.2

Reach – Fully Raised (inches): 24.5

Reservoir Capacity (gallons): 10

Reservoir Capacity (liters): 37.8

RPM: 2600

Track Length (inches): 127.6

Track Length(cm): 324.1

Track Width (cm): 24

Track Width (inches): 9.5

Tracks: Sprocket-drive, 6 road wheels per side

Traction: Dual Hydrostatic Pump

Weight (kg): 1265

Weight (lbs): 2790

Wheelbase (inches): 41
