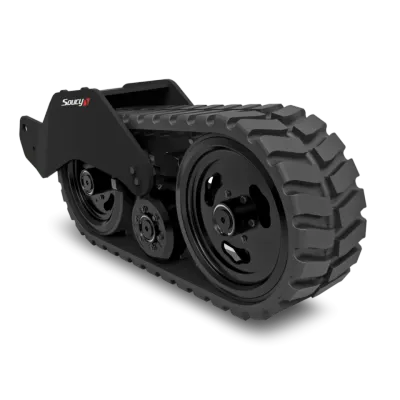

Soucy - Model S-TECH 012P - Track System for Case IH Planters
Get the most yield out of your field.
- Maximized planter load capacity recuding trips to and from the fields when the ground is moist
- Access to your fields at all times providing wider planting window
- Reduced pinch-row compaction for a better yield
MAXIMUM PERFORMANCE
The use of a track system for planters does not create ruts or mounds of soil when turning at the end of the field. Circulation occurs without leaving a trace, which supports more uniform plant emergence and growth.
PROTECT YOUR SOIL
As the weight is distributed over a larger surface area, there is less pressure on the ground. You therefore protect your land from compaction and offer the best growing conditions for your seeds, as rooting will be easier.
MAXIMUM LOAD CAPACITY
With a total contact surface of 1,622 in² (1.07 m²), the track system allows you to increase your load capacity. By filling your seed tanks to their maximum capacity, you increase efficiency by reducing unnecessary trips to and from the field.
A : Track width : 305 mm
B : Overall length : 1,500 mm
C : Overall height : 663 mm
D : Pivot axis height : 419 mm
E : Rear tension wheel diameter : 559 mm
F : Support wheel diameter : 279 mm
G : Front tension wheel diameter : 483 mm
Weight : Approximately 4,800 lbs / 2,180 kg
Transport load capacity : Up to 25,000 lbs / 11,340 kg
Maximum transport speed : 32 km/h / 20 mph
Load capacity in the field : Up to 30,000 lbs / 13,608 kg
Total ground contact area : 1.07 m² / 1662 in²
*For the set of 4 tracks
