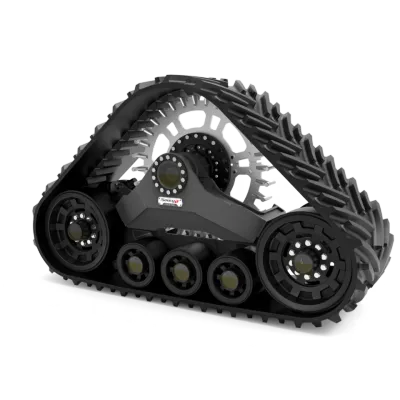

Soucy - Model S-TECH 1000G - Track System for Combine Harvesters

FromSoucy
SHARE
The S-TECH 1000G is a track system designed for combine harvesters, offering optimal flotation with a 36-inch width and a ground contact surface of 5,710 square inches, enhancing performance in difficult soil conditions. Its compact design improves maneuverability, allowing for easier field navigation. Installation is expedited with its bolt-on design, enabling the transition from tires to tracks in less than three hours, requiring just a torque wrench and no special lifting tools. Specific installations for John Deere combine harvesters can be done without adapters, though others might need one. Using oil bath hubs, the S-TECH 1000G minimizes maintenance requirements by replacing frequent greasing with annual oil changes post 500 hours of use. To maximize lifespan and performance, avoid using tracks on roads or hard surfaces with heavy loads, and consult the Soucy User Guide for maintenance practices. The track system comes with a warranty for purchases through authorized dealers.
Most popular related searches
harvesting combine
harvesting system
soil conditioning
harvest planning
soil compaction

Access your fields at all times.

  • Excellent flotation for compact combine harvesters
  • Fast and easy to switch from tires to tracks in 2 to 3 hours
  • Work in muddy conditions without getting stuck



OPTIMAL FLOTATION
You can bank on optimal flotation. Even in difficult soil conditions, the track’s 36 in (914 mm) width and 5,710 in² (3.68 m²) ground contact surface enable you to harvest confidently.

BETTER MANEUVERABILITY
The S-TECH 1000G has a more compact design. This means more maneuverability for you. Turning at the end of the field has never been easier!

QUICK AND EASY INSTALLATION
We know that when it’s harvest time, every second counts! The S-TECH 1000G is easy to install. Thanks to its bolt-on design, you can switch from tires to tracks in under 3 hours, ensuring a flexible harvesting plan.

A : Track width : 914 mm
B : Overall length : 2,899 mm
C : Overall height : 1,728 mm
D : Pivot axis height : 1,016 mm
E : Rear tension wheel diameter : 711 mm
F : Support wheel diameter : 368 mm
Weight : Approximately 9,900 lbs / 4,490 kg
Transport load capacity : Up to 52,250 lbs / 23,700 kg
Maximum transport speed : 28 km/h / 17.5 mph (may vary depending on tire size and transmission configuration)
Load capacity in the field : Up to 65,000 lbs / 29,500 kg
Total ground contact area : 3.68 m² / 5,710 in²
*For the set of 2 tracks
