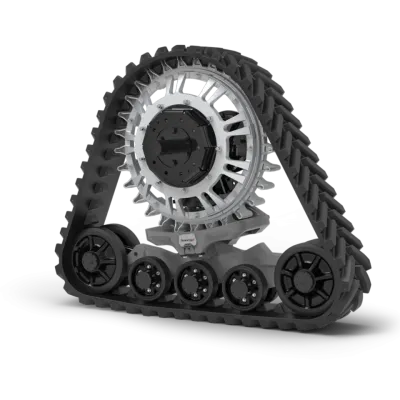

Soucy - Model S-TECH 600R - Track System for Tractors

FromSoucy
SHARE
The S-TECH 600R is a specialized narrow track system designed for use on tractors, offering increased ground clearance and load capacity. This system provides flexibility by allowing adjustments to fit row spacing from 59 to 89 inches without needing additional attachments. It enhances tractor stability and efficiency with a unique subframe and adaptation system, improving load distribution while maintaining compatibility with 3-point hitches. Notably, replacing equivalent-width tires with the S-TECH 600R increases ground contact area by up to 3.5 times, significantly enhancing traction. Installation requires no special tools and takes about 16 hours, adapting to tractors ranging from 75 to 250 HP. Its oil bath hubs reduce maintenance, with only annual oil changes and periodic lubrication needed. Covered by a comprehensive warranty, the system's lifespan can be extended through diligent maintenance as outlined in the user guide. Ideal for field, vegetable, and specialty crops, it optimizes performance with proper tractor ballast adjustment.
Most popular related searches
3 point hitch
tractor
field vegetable
tractor ballast
specialty crop
crop farming
vegetable crop
crop performance
crop protection
specialty vegetable

A multipurpose track system for more flexibility.

  • Tow different equipments according to your needs
  • Adaptable to different types of crops
  • More comfort for long workdays



MATCH TO YOUR ROW SPACE TO THE NEAREST INCH
The S-TECH 600R is built to suit you and not the other way around. The technology of this track system allows you to adjust the width to your row spacing, from 59 to 89 inches (1,500 mm to 2,250 mm). No additional attachments are required.

INCREASE YOUR GROUND CLEARANCE
This track system has been designed to meet speciality crops’ needs. For instance, it increases the tractor’s ground clearance by 6 to 14 inches (150 mm to 350 mm), depending on the tractor model and the way tires are mounted. This means you can move through growing crops and better protect your plants throughout operations.

INCREASE YOUR LOAD CAPACITY
With the highly specialized and unique subframe coupled with the adaptation system and the increased traction of the tracks, the S-TECH 600R creates a stronger, more stable and efficient tractor. There is no modification required to your vehicle and the load distribution is better without interfering with the 3-point hitch. Result: increased efficiency, productivity and a greater ROI.

A : Rear track width : 305 and 406 mm
B : Overall lenght of the rear track : 2,085 mm
C : Overall height of the rear track : 1,679 mm
D : Height of the rear track pivot axis : 1,054 mm
E : Rear tension wheel diameter : 432 mm
F : Support wheel diameter : 279 mm
G : Front track width : 305 and 406 mm
H : Overall length of the front track : 1,839 mm
I : Overall height of the front track : 1,348 mm
J : Height of the front track pivot axis : 863 mm
K : Front tension wheel diameter : 432 mm
L : Support wheel diameter : 279 mm
Weight : Approximately 7,725 and 7,920 lbs / 3,415 and 3,595 kg
Transport load capacity : Up to 29,800 lbs / 13,100 kg
Maximum transport speed (with a transmission of 40 km/h) : 28 km/h / 17.4 mph
Load capacity in the field : Up to 35,500 lbs / 16,100 kg
Total ground contact area : 1.70 and 2.27 m² / 2,640 and 3,520 in²
*For the set of 4 tracks
