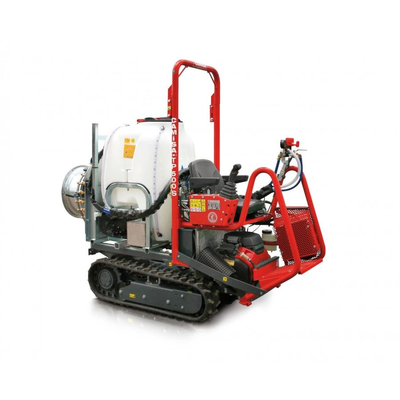

Fratelli-Camisa - Model TP 500 S -Tracked Minidumper for Viticulture

Loading platform with double effect cylinder hydraulic tipping. Hoist for Pto. Retractable hoist for Pto. Pto sx 540 rev/min. Atomizer.

Most popular related searches

Pull start: electric start
Transmission: hydrostatic with piston pump
Hydraulic motors: with epycicloidal reducers
Brakes: negative
Controls: 1 lever joystick for speed-and corse control with servo-control
Seat: with safety belt
Safety roll bar: APPROVED
Guide rollers: with unthreading pins assembled on bearings
Tracks: rubber
Spring tensioner: for the tracks
Heat exchanger: with electro-fan
1 hydraulic connections: to move attachements, from 0 to 25 lt/min with flow regulator
5 hydraulic connections: double acting from 0 to 13 lt/min
Overall dimensions: mm. 1950x760x1960
Weight: Kg. 400
Capacity: Kg. 500
Speed: from 0 to 5 Km/h by gradual change
Treated on all metallic parts: powder painting

Technical Specifications
