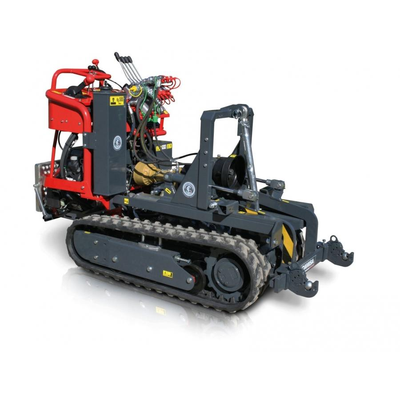

Fratelli-Camisa - Model TP 500 PDF 21/23 HP -Tracked Minidumper for Viticulture
FromFratelli Camisa
Hydraulic connections 1/2" for hydraulic distributors. Operator`s platform. Pto inverter. Loading platform with double effect cylinder hydraulic tipping. Double hydrulic circuit. Hoist for Pto. Retractable hoist for Pto. Front flail width mm. 900. Atomizer. Butt irroration barrow with pump and hose reel.
Most popular related searches
- Engine: Honda GX 630 2 cylinders (Cv 20,8 / Kw 15,5) gasoline
- Briggs & Stratton Vanguard 23 2 cylinders (Hp 23 / Kw 17) gasoline
- Start: electric
- Transmission: hydrostatic with piston pump
- Hydarulic motors: with epycicloidal reducers
- Brakes: negative
- Advance: 1 lever to control speed
- Controls: 2 lever to control direction
- Frame: with slides and quick connections for accessories
- P.t.o: sx 540 rev/min with mechanical control
- Guide rollers: with unthreading pins assembled on bearings
- Tracks: rubber
- Spring tensioner: for the tracks
- Heat exchanger: with electro-fan
- 1 hydraulic connections: to move attachements, from 0 to 25 Lt/min with flow regulator
- 4 hydraulic connections: double acting
- Overall dimensions: mm. 1450x710x1210
- mm. 1450x670x1210 (narrow version)
- Weight: Kg. 450/500
- Capacity: Kg. 500
- Speed: from 0 to 4 Km/h by gradual change
- Treated on all metallic parts: powder painting
