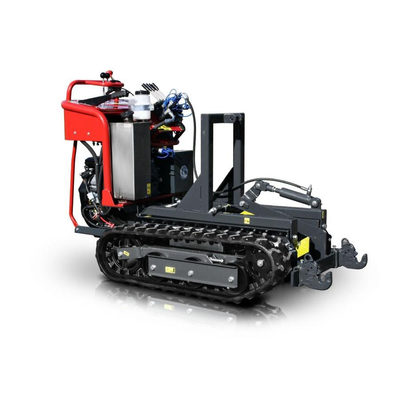

Fratelli-Camisa - Model TP 500 PDF 13 HP -Tracked Minidumper for Viticulture
FromFratelli Camisa
Operator's platform. Pto inverter. Loading platform with double effect cylinder hydaulic tipping. Hydraulic motors with epycicloidal reducers and negative brakes. Hoist for Pto. Retractable hoist for Pto. Front flail width mm. 900. Atomizer. Butt irroration barrow with pump and hose reel.
Most popular related searches
- Engine: Honda GX 390 (Cv 11,7 / Kw 8,7) gasoline
- Pull start: recoil and electric start
- Transmission: hydrostatic with piston pump
- Hydraulic motors: orbit motors
- Brakes: negative
- Advance: 1 lever to control speed
- Controls: 2 lever to control direction
- Frame: with slides and quick connections for accessories
- P.t.o: sx 540 rev/min with mechanical control
- Guide rollers: with unthreading pins assembled on bearings
- Tracks: rubber
- Spring tensioner: for the tracks
- 2 hydaulic connections: double acting
- Overall dimensions: mm. 1450x710x1210
- mm. 1450x670x1210 (narrow version)
- Weight: Kg. 450/500
- Capacity: Kg. 500
- Speed: from 0 to 4 Km/h by gradual change
- Treated on all metallic parts: powder painting
