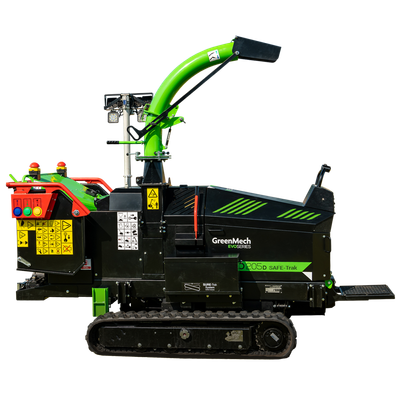

GreenMech - Model EVO 205D SAFE-TRAK -Tracked Wood Chippers

SEE FOR YOURSELF

The SAFE-Trak System is designed with Greenmech’s patented and award-winning track extension system, allowing ground clearance of up to 540mm enabling access across the most difficult terrain. This pioneering feature makes it popular for de-veg contractors working on power lines and railway track maintenance.

By extending only one track at a time, embankments of 35 degrees can be traversed in complete safety, allowing the chipper to get to the material to be chipped.

The SAFE-Trak System, therefore, provides extra adjustment above normal tolerances and so ensures the safety of the operator, crew and machine in challenging conditions.

The backbone of the EVO 205D’s design is based on a deep beam, high tensile steel chassis which creates tremendous strength and ensures a robust performance. A new, generous in-feed hopper measuring 1250mm x 700mm, means that free-flow of bulky material can be handled without having to trim to a more manageable size. As the material passes through twin, horizontal feed rollers, GreenMech’s Smart Sense No-Stress system automatically manages the throughput of material to maximise chipping efficiency.

The Kubota Stage V–compliant 50hp diesel engine powers the chipping system, and the heavy-duty flywheel features 2 banks of 3 discs. GreenMech’s renowned Disc Blade System allows rotation of each disc’s cutting edge and extends the sharpening period to only once in approximately 150 hours. This is a feature that reduces downtime, cuts maintenance and maximises working performance.

Maintenance is simple via the hinged steel bonnet, along with a centralised grease point and easy-to-remove shear bars.

Like all GreenMech chippers, the EVO 205D SAFE-Trak is manufactured with a heavy-duty construction design, using high-quality materials and a highly durable powder-coat finish which stands the test of time and holds a very strong residual value. This machine comes with a full, unlimited, three-year, no-quibble warranty.

• EVEN More Aggressive Torque
• EVEN More Aggressive Bite
• EVEN More Throughput
• SAFE-Trak System
• Smart Sense Controller
• 530mm Ground Clearance

NEW “SMART SENSE” CONTROLLER

Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

SAFE-TRAK SYSTEM

Incorporates two independently adjustable track legs, allowing the operator to safely traverse slopes of up to 35 degrees.

GROUND CLEARANCE

Clearance of 250mm with the tracks in and 530mm with the tracks out helps access to sites over demanding terrain.

TRACK OR CHIP

Console switch ensures machine is either tracking or chipping, so minimising the risk of any accidental operation.

HORIZONTAL ROLLERS

Gather and grip the material while offering a smooth flow into the processor with reduced lateral movement.

TWIN TRACK DRIVE

Each track has its own drive motor for improved security and reliability and together provide a tracking speed of 4kph.

• CAPACITY: 205mm
• ENGINE MAKE: Kubota D 1803-CR-TE4B
• ENGINE OUTPUT: 50hp
• FUEL: Diesel
• CHIPPING FLYWHEEL: Disc Type
• BLADES: 6
• GROUND CLEARANCE: 530mm Max / 250mm Min
• TRACK SPEED: 4kph
• HYDRAULIC FEED ROLLERS: Twin Horizontal
• POWER CONTROL: No Stress
• FUEL CAPACITY (ENGINE): 50 Litres
• HYDRAULIC OIL CAPACITY: 50 Litres
• SPARE WHEEL: N/A
• TONNES PER HOUR: 22 Cubic Metres / 7 Tonnes Per Hour
• INFEED CHUTE APERTURE: 1250mm x 700mm
• INFEED THROAT SIZE: 205mm x 270mm
• DISCHARGE CHUTE: 280 Degrees Rotation
• HOUR METER: Standard
• LENGTH (TRANSPORT): 3860mm Max / 3020mm Min
• WIDTH (TRANSPORT): 2296mm Max / 1490mm Min
• HEIGHT (DISCHARGE CHUTE UP): 2890mm Max
• WEIGHT: 2085 kg
• SOUND POWER LWA: 118 dB(A)
• SOUND PRESSURE LPA: 91 dB(A)
