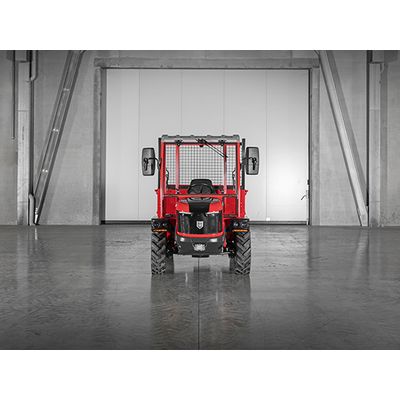

Caron - Model 100 EVO 5 Series - Tractor
The Series 100 is the smallest model of Caron range. Thanks to the lightweight and small size, it is extremely agile and handy, ideal for private users. The permanent 4-wheel drive and the double hydraulic circuit braking system on all 4 wheels guarantee safety and stability on every ground. The water cooled Kohler engine (3 cyl. / 1649cc) has 25 hp with a 100 Nm torque and it is approved according to the latest Stage V emissions regulations. Total approved mass of 3500 kg and payload up to 2000 kg. Gearbox is available in two versions: with 18 speeds (12+6) or synchronized with 24 speeds (16+8). Available in articulated (AR) or front steering wheels (ST) version, with approved closed or open cab or protection arch.
All the models of the AR/ST range are available in three different fittings: from the simple roll bar to the open or closed cabs with heating system. Particular attention has been paid to this spacious and completely sound-proofed cab to ensure the highest comfort level to the driver.
The cab - approved as Rops - is equipped with heating system, openable windscreen and rearview mirrors.
AR version (articulated) is characterized by the hydraulic steering in the central joint. Compared to the front wheel-steering version, it provides a reduced turning radius and the passage of the rear wheels on the front wheels` trails. The AR models are particularly suitable for the operators working in very reduced places and narrow passages.
They are available in different widths and wheelbases.
ST version (steering wheels) is characterized by the hydraulic steering in the front wheels. The AR/ST models have a low centre of gravity and the version ST with steering wheels guarantees the highest reliability in extreme conditions and very steep slopes.
They are available in different widths and wheelbases.
- The central joint in the chassis ensures constant grip of the four wheels also on the most uneven road surfaces.
- The suspensions system of the driving platform on silent-block isolates the operator from the engine and the other mechanical parts and guarantees reduced vibration and noise. The result is a more comfortable driving on any grounds without affecting performance and stability.
- Central driving place with controls placed according to the greatest ergonomics.
- Thanks to the wide adjustments` possibility of the driving seat with mechanic suspensions, the operator can always find the right driving position.
- The digital instrument panel provides all the information for the proper use of the vehicle.
- The front window is openable. Moreover, the cab doors can be quickly removed to better ventilate the cab during the hottest days.
- Battery master-switch for the rest period.
FITTINGS
- Rear standard PTO, 540 rpm/min (model 140)
- Rear standard PTO with 2-speeds, 300-540 rpm/min (model 190)
- Approved rear drawbar hitch for braked trailers up to 4680 kg (3120 kg for AR version) and unbraked trailers up to 1000 kg.
- Removable hydraulic 3-point linkage, with 2 pistons, max lifting capacity of 500 kg. Suitable for the transport of equipments such as cranes and forest cranes, winches, woodcutting machine, etc.
- Hydraulic distributor with 2 remote levers and 3 outlets rear the seat.
- Reinforced loading platform with tubular sides. Complete of rope winder winches. Different widths are available.
- Tyres 7.5L-15 with tractor profile.
- Tyres 10.0/75-15.3 with tractor or industrial profile.
