Pronar - Model 5222 - Tractor

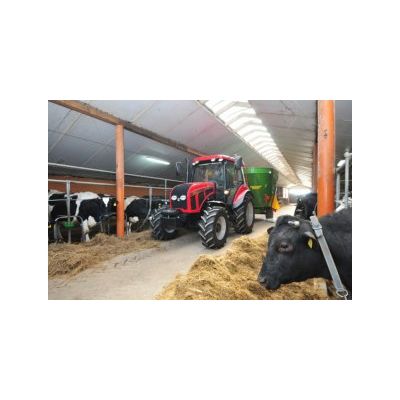

Tractor Pronar 5222 is designed for customers with small and medium-sized farms, and also perfectly suited as a auxillary tractor in large-scale farms. 4-cylinder, turbocharged IVECO engine mounted in the tractor generates power 86hp. This power is transmitted to the wheels via a Carraro gearbox which offering 24 gears forward and 24 backward. The tractor is equipped with a reverse gear. Tractor Pronar 5222 is a combination of high performance hydraulic system, maneuverability, extensive and comfortable cab with a seat for the passenger, reliability and low operating costs.
EXCELLENT QUALITY
Built with components of renowned brands.
EFFICIENT
3000kg lifting capacity of rear linkage and rear hydraulic pump with output of 56dm³ / min, offer many possibilities to aggregate with various machines.
AGILITY
Small turning radius, reverse gear.
COMFORTABLE
Large well muted cabin, hinged windows, passenger seat, excellent visibility.
UNIVERSAL
Works excellent as a transport tractor and in the light field work or with front loader.
- Brand: Iveco Stage IIIA, 4 cylinder
- Nominal power: 63 (86) according to 97/68/EC kW (hp)
- Nominal rated speed: 2300 rpm
- Maximum torque: 363 Nm
- Rotational speed at maximum torque: Jul-03 rpm
- Injection system: injection pump with mechanic regulation
- Inlet system: with turbocharger and intercooler
- Fuel tank capacity: 110 dm3
- Specific fuel consumption: 217 - minimal g/kWh
- Gearbox type: Carraro mechanical, synchronized
- Total amount of gears: 24/24 Synchro Super Reduction - standard front/rear
- Oil tank capacity: 43, common oil with transmission system dm3
- Oil pump output at engine nominal speed: 56 dm3/min
- Working pressure: 185 bar
- Number of splitter sections: 2 - standard, 3 -option
- The amount of hydraulic jacks: 2 pairs / 0 - standard rear/front; 3 pairs / 0 – opcja:
- Maximum lifting in rear coupler axis ends: 3000 - standard, 3600 - option kg
- Cabin: single seat, hinged windows and passenger seat
- Length (with weights at the front and rear couplings in transport position): 4130 mm
- Width: 1960-2486 mm
- Height: 2482-2585 mm
- Curb weight: 4130 kg
Front weights
Radio + Speakers
Side passenger seat
