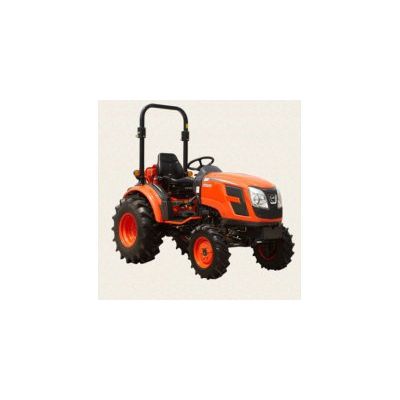

- Kioti - Model CK2510 - Tractor
The Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco friendly Tier 4 engine, the CK10 series offers the operator a quiet work environment with powerful performance.
HST models feature performance proven, heavy-duty HST drives that deliver power and efficiency. The three range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.
Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.
The ergonomic 3-point control lever has smooth motion for reduced effort and improved control. A rear, external 3-point control lever allows the operator to control the 3-point for easier attachments of implements.
The maximum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler.
- Engine Gross Power: 24.5 hp (18.2 kW)
- PTO Type: Transmission
- Transmission Type: Manual
- Shuttle: Synchronized 1st to Reverse
- Diesel engine with Daedong ECO Technology
- Rear PTO with adjustable three-point hitch
- Foldable ROPS
- Hydrostatic Power Steering
- Single Lever Joystick Standard
- High Capacity Hydraulic Pump
- Field Option Cab Available
- Drive Over Mid-Mount Mower Available
Engine
- Engine Model 3A165LWB
- Engine Gross Power 24.5 hp (18.2 kW)
- Rated Speed 2,600 rpm
- No. of Cylinders 3
- Fuel Type Diesel
- Aspiration Natural
- Displacement 100 cu. in. (1,647 cc)
- Fuel Tank Capacity 6.6 gal. (25 L)
Transmission
- Transmission Type Manual
- Main Gear Manual
- No. of Travel Speeds - Forward / Reverse 6F/2R
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0.75 mph (1.20 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed 10.8 mph (17.34 km/h)
Power Take-Off (PTO)
- PTO Type Trans Transmission
- PTO Power 19.5 hp (14.5 kW)
- Rear PTO Speeds (1st) 540 rpm
- Mid PTO Speeds 2,000 rpm (optional)
Brakes and Clutch
- Brakes Wet Disc
- Clutch Dry Single
Dimensions w/ AG Tire
- Length w/ 3-point hitch 109.08 in. (2,771 mm)
- Width 49.2 in. (1,250 mm)
- Height from Top of ROPS 82.8 in. (2,103 mm)
- Wheelbase 59.8 in. (1,519 mm)
- Ground Clearance 13.4 in. (340 mm)
- Front Tread Ag Tires - Min 37.8 in. (960 mm)
- Rear Tread Ag Tires - Min 37.4 in. (950 mm)
- Min. Turning Radius w/ Brake 8.3 ft. (2.53 m)
Hydraulics
- Total Pump Flow 11.3 gpm (42.9 L/min)
3-Point Hitch
- Standard Category Category 1
- Lift Capacity, 24" aft of hitch 1,203 lbs. (546 kg)
- Control Type Position
Weight
- Weight w/ Ag Tires w/ ROPS 2,260 lbs. (1,025 kg)
