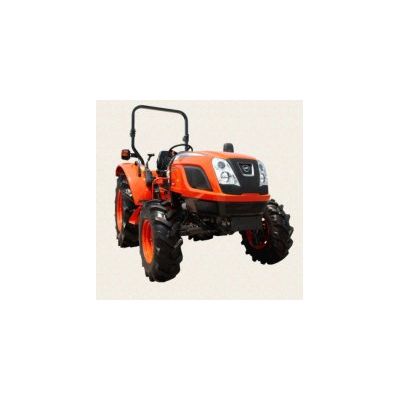

- Kioti - Model NX4510 - Tractor
- Engine Gross Power: 45 hp (33.6 kW)
- PTO Type: Independent
- Transmission Type: Synchro Shuttle
- Shuttle: Dry Type Single Plate
- 24x24 Manual Transmisson
- CRDI diesel with Daedong ECO Technology
- Independent PTO with Auto and Manual Selection
- PTO Cruise Control
- True Speed Cruise Control
- Rear Differential Lock
- Torque Compensation
- Open Station (ROPS)
The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NX series offers the operator a quiet work environment with powerful performance.
With one touch, engine speed may be set to maintain steady PTO rpm to maximize working efficiency. When engaged, the operator may manipulate the PTO rpm by simply clicking a switch.
This feature enables the engine to maintain a consistent and stable torque level under all conditions.
Hydrostatic power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.
When the "Anti-Stall function" is engaged, the tractor will protect itself from instant engine stall when there is momentary engine overload. The operator can also fix and set maximum speed limit when safe and precise working is needed.
Engine
- Engine Model 3F183T
- Engine Gross Power 45 hp (33.6 kW)
- Rated Speed 2,600 rpm
- No. of Cylinders 3
- Fuel Type Diesel
- Aspiration Turbo Charged
- Displacement 111.4 cu. in. (1,826 cc)
- Fuel Tank Capacity 14.8 gal. (56 L)
Transmission
- Transmission Type Manual
- Shuttle Synchronized
- Main Gear Synchronized
- No. of Travel Speeds - Forward / Reverse 24 x 24
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0.11 mph (0.17 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed 15.71 mph (25.28 km/h)
Power Take-Off (PTO)
- PTO Type Trans Independent
- PTO Power 37.6 hp (28 kW)
- Rear PTO Speeds (1st) 540 rpm
- Mid PTO Speeds 2,000 rpm (Optional)
Brakes and Clutch
- Brakes Wet Multi Disc
- Clutch Dry Single Plate
Dimensions w/ AG Tire
- Length w/ 3-point hitch 139.6 in. (3,547 mm)
- Width 65.6 in. (1,665 mm)
- Height from Top of ROPS Cab 103.1 in. (2,618 mm)
- Wheelbase 75.6 in. (1,920 mm)
- Ground Clearance 13.7 in. (350 mm)
- Front Tread Ag Tires - Min 55.2 in. (1,352 mm)
- Rear Tread Ag Tires - Min 52.1 in. (1,324 mm)
- Turning Radius w/ Brake 9.81 ft. (2.99 m)
Hydraulics
- Pump Gear
- Pump Capacity (Max. Flow Rate) 16.5 gpm (62.4 L/min)
3-Point Hitch
- Standard Category Category I
- Lift Capacity, 24" aft of hitch 3,177 lbs. (1,441 kg)
- Control Type Position with Draft Control
Weight
- Weight with Ag Tires 3,998 lbs. (1,813.5 kg)
