Case-IH - Model Farmall N Series - Tractor

SHARE

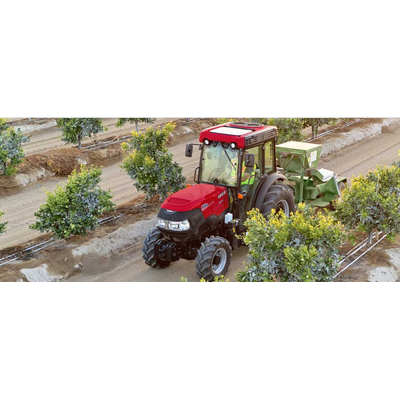

The Farmall N series tractors are designed for vineyards, orchards or any application where space is at a premium. Designed for orchards and vineyards, Case IH Farmall N series tractors offer versatility and ease-of-use without sacrificing operator comfort.

Most popular related searches
3 point hitch
tractor
vineyard orchard
orchard
vineyard
orchard application

Built for Efficiency

Farmall® N series tractors are powered by a 4-cylinder Tier 4A-compliant diesel engine and available with 2WD or MFD axles.

Engine

  • Clean burning and fuel efficient
  • 3.4 L (207 cu. in.)
  • 19 gal (72 L) fuel capacity

Axles

  • A 55-degree turn angle on both the MFD and 2WD axles provides maximum maneuverability in tight spaces
  • Standard differential lock on rear axles provides added traction in slippery, tough conditions
  • Up to 11-degree axle oscillation provides smooth travel over rough terrain

Hitch

Farmall N Series tractors come standard with:

  • A rugged Category II 3-point hitch with 3,962 lbs. (1,797 kg) of lift capacity
  • Two lever hitch controls— one for position and one for draft sensitivity
  • A Fast Raise/Lower switch that saves time by providing push-button control of the 3-point hitch, making turns easier by returning the implement to its working depth
  • Adjustable stabilizer blocks to control width limits
  • Lower link draft-sensing for precise control
  • Fixed link ends and mechanical draft control to handle heavy implements with precision in challenging applications
  • A swinging drawbar with clevis hitch for quick, easy connection

Hydraulics

The Farmall N Series features a heavy-duty hydraulic system with two dedicated pumps:

  • One pump for the remotes and hitch, one for the steering
  • A 12.4-gpm(46.9-Lpm) pump dedicated to the implement on 2WD versions
  • A 17.2-gpm(65.1-Lpm) pump with oil cooler dedicated to the implement on MFD tractors
  • Two rear remote valves

Service

  • Designed for speedy, simple service access.
  • Check engine oil without lifting the hood. Check common reservoir level for transmission, steering and hydraulic systems with one dipstick
  • Access engine air filter from the ground for quick, easy, regular cleaning and replacement
  • Fast, no-tools access to battery and radiator under a one-piece, flip-up hood that lifts on gas struts
  • Long, 300-hour oil filter service intervals extend work time between service stops and lower operating costs
  • Ground-level fuel tanks make refueling convenient.
