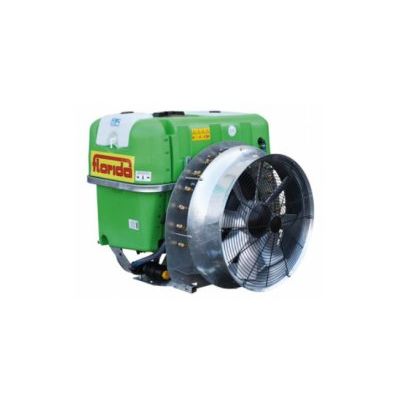

Naza - Tractor Mounted Airblast Sprayers
Studied and developed to meet the requirements of modern agricolture, the line of NAZA sprayers by FLORIDA represent a professional and advanced product, which answers to the various problems presented nowadays by cultivation treatments. The wide range of polyethylene tanks of our exclusive design equipment with built-in hand and spraying circuit washing tanks, the different high efficiency fan units, the availability of several accessoires and applications, the full compliance with the standards for operator`s safety and for environment protection, make the new NAZA sprayers extremely versatile for the use in different cultivations (orchards, vineyards, oliveyards, etc.) as well as in different plantation systems.
Standards
All Florida sprayers are conforming with CE Standars to guarantee the operator`s safety and health protection; they also comply with the other European standards safety and environment protection.
Tank
- Actualcapacity 5% higher than nominal capacity;
- Residual liquid quantity in flat position and with inclination 10% lower than the limit allowed by the present regulation;
- Hydraulic circuit washing tank;
- Cleans water for hand-washing.
Pumps
Type diaphagram: delivery litres/min. 40/120, max pressure 40/50 bar.
Type piston: delivery litres/min. 70/90, max pressure 50/60 bar.
Nozzles
Brass double body nozzles with membrane anti dripping device of 0,5 bars. Available with ceramic plates, Albuz nozzles, Spraying Systems nozzles. Suitable for normal, medium and low volume treatments.
Fan unit
With pitch aluminium fan, two-speed gearbox, centrifugal clutch.
- Polyethylene tank
- Hot galvanised frame and conveyor
- Aluminium fan with variable pitch blades and clutch
- Gerabox with two speeds and disengaging
- Manual control in aluminium with pressure regulator placed on frame
- Complete connections with R1 hydraulic type hoses
- External suction filter with non-return valve
- Inspectable hydraulic agitator
- Brass double nozzles with anti-drip device and ceramic plates
- Nozzle support booms in stainless steel
- Hand washing tank
- External graduated level gauge
- Side valve to empty tank
- Circuit washing device
- COMET ALUMINIUM: APS 51, APS 71, APS 96, APS 121.
- COMET BRASS: IDS 960, IDS 1201, IDS 1401.
- ANNOVI REVERBERI ALUMINIUM: AR 503, AR 813, AR 1064, AR 1203, BHA 130
- ANNOVI REVERBERI BRASS: BHS 130
