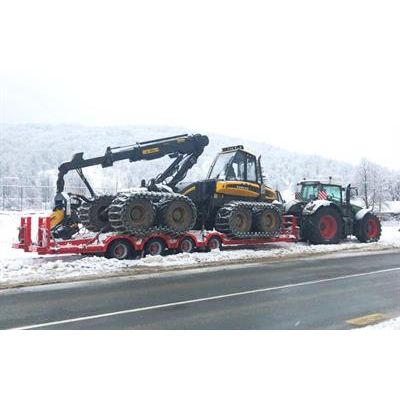

NC - Tractor Tow Forestry Trailer

Bed length 10m. Bed width 2.6m (Note wider than EC maximum width of 2.55m). Bed height 500mm. Short ramps front and rear (rear spring assisted). 3 off 8-stud 100mm axles with 300×90 brakes including rear steering axle. Hydraulic brakes using 30mm cylinders & external assisted springs. 215/75×17.5 J rated wheels. 2-leaf 100mm parabolic springs rated. LED lights c/w marker boards & 2 off rear worklights. Centre of chassis sheeted (Durbar to front followed by toolbox with timber over wheels). Outriggers. Painted NC red, NC blue, NC green, NC yellow or black.
