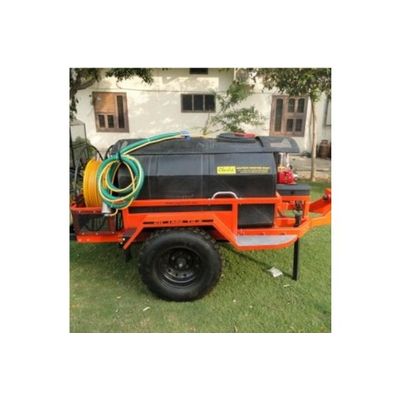

Charlie - Model CH-1500-TGA -Tractor Trailer Gun Sprayer

Model no. : CH-1500-TGA. Tank Capacity : 1500 liter. Sprayer Unit : Charlie ® Trailer Sprayer. Working Pressure : Ideally 20 & 40 bars. Pressure Adjustment : 1-40 bars. RPM : PTO rpm 540. Pump discharge rate : 65 1/pm @ 540 rpm. HP required : 25 HP minimum. Tyre Size : 16 inches load tyres. Hose Real : 400 meter hose capacity. Pipe : 10 mm , 5 layer ,Max ideal working pressure 60 & bursting pressure 120. Gun : Teejet® Gunjet , with 42 feet vertical & 50 feet horizontal throw. Total Weight : 670 Kg approximately. Machine Size LxWxH ( in feet) : 11x6x5.
