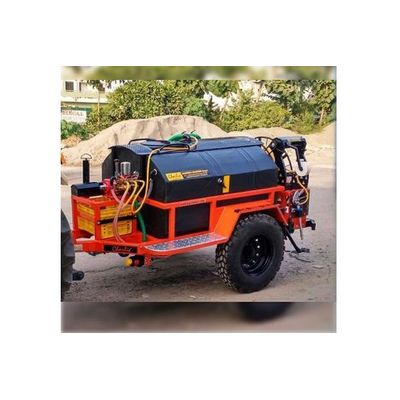

Charlie - Tractor Trailer Sprayer
FromCharlie Sprayers
Tank :- Capacity 2000 litters. Material Agro Chemical resistant Polyethylene. Agitator Hydraulic. Tank lid size 14 inches (355mm). Level indicator Graduated circular dial.
Most popular related searches
- Pump :-
- Type Charlie® Triplex Plunger Pump (Diaphragm Pump Optional)
- Capacity 80 litters/Min
- Working pressure 40 bars (600 psi)
- Filters :-
- Type Auto flush out anti leak
- Capacity 100 litter/min
- Mesh 80
- Spray gun :-
- Type Trigger type made with USA technology
- Discharge 1 liter to 53 liters
- No. of Nozzle disc sizes 1,2,3,4,5,6,7,8,10 (6 no. supplied others no. optional)
- Hose:-
- Size 10 mm id
- Type Cotton fiber breaded hose
- Working pressure max 60 bars (recommended 40 bars)
- Bursting pressure 180 bars
- Auto rewinding :-
- Actuation Mechanical
- Winch systematically
- Rewinding with Foot paddle system auto and hand operated
- Auto filling :-
- Size 40 mm id 16 feet long
- Working principal venturi
- Filter size 70-150 litter/min
- Size :-
- Length x width x height 154” x 71” x 67” inches / (390x 181 x 170 cm)
- Weight 1000 kg Approximately
- Track width 165 cm
- Axles fixed, 50 mm
- Ground clearance 36 cm
- Tires 7.50 16R (tubeless optional)
- PTO Shaft :-
- Length 14 inches
- Type & spline 6 spline telescoping (21 spline optional)
