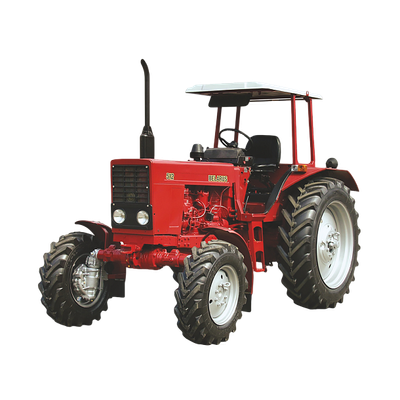

Belarus - Model 510/512 - Tractors

Engine

• Type: diesel engine with direct fuel injection, without turbocharger
• Model: D-244
• Power, kW (h.p.): 42 (57)
• Crankshaft rated speed, rpm: 1700
• Number of cylinders, pcs.: 4
• Displacement, l: 4,75
• Maximum torque, Nm: 271
• Specific fuel consumption at operating power, g/kWh: 235
• Factor of torque backup, %: 15
• Fuel tank capacity, l: 130

Transmission

• Clutch: dry, single-disk
• Gearbox: mechanical, fixed ratio
• Number of gears: forward/reverse: 9/2 (on order - 18/4)
• Travel speed: forward/reverse, km/h: 1,44-26,5/3,18-7,1

Rear PTO:

• continuous I, rpm: 540
• continuous II, rpm: 1000
• ground-speed I, rev/m of travel: 3,4

Hydraulic lift linkage

• Versatile, remote-cylinder with height control , optional – with draft and position control of soil cultivation depth
• Lifting capacity at suspension point, kg: 3200
• Maximum pressure, MPa: 20
• Pump performance,l/min: 45
• Hydraulic system capacity, l: 21

Dimensions and weight

• Overall length, mm: 3815/3930
• Width, mm: 1970
• Height to cabin top, mm: 2190

Track, mm:

• front wheels: 1350-1850
• rear wheels: 1400-2100
• Agrotechnical clearance, mm: 590
• Least turning radius, m: 4,1
• Operating weight, kg: 3430/3640
• Fordable depth, m: 0,85

Tire sizes:

• front wheels: 9,0-20/11,2-20
• rear wheels: 15,5R38
• Wheel arrangement: 4х2/4х4

• TSU-2 tow hitch (hydraulic hook);
• Combined trailing appliance (pendulum and hydraulic hook);
• Rear wheel ballast weights;
• Front ballast weights;
• Fast-coupling cutoff clutches;
• Hitch hoses.
