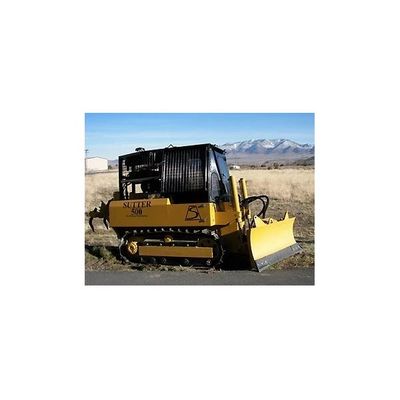

Sutter - Model 500 -Trail Dozer
Sutter Equipment Company has updated the previous SWECO 480 to the new SUTTER 50C You can build 1000 ft./hr or more of 3 to 4 ft. wide trails. Build trails uphill with ease and rolling dips in minutes. Pay for the TRAIL DOZER in less than one season with the savings realized from decreased labor costs.
Most popular related searches
We had $75,000 and three months budgeted to finish the last 7.5 miles of the Pacific Crest Trail and we finished it in 8 days at a cost of less than $8,500 with our Trail Dozer."
Angeles National Forest
Arcadia, CA
- Engine :Kohler Turbo
- EPA Rating: Tier 4 Final
- Fuel: Diesel
- Horsepower: 74 HP 2,000 RPM
- Type: 4 cylinders
- Cooling Medium: Water
- Electrical System: 12 volts
- Max Inclination, all angels: 35 degrees
- Fuel Consumption (Avg): 1.0 Gal/Hr approx.
- Transmission
- Sauer-Danfoss twin hydrostatic pumps and Auburn gear 100,000 in. lb. torque hubs
- Steering
- Dual controls, full hydrostatic, counter-rotating (standard) - other options available
- Hydraulics
- Gear Pump 15-20 g.p.m. 2200 PSI triple filtration, 10 micron
- Undercarriage
- Make: Berco
- Track Frame: Rigid Frame
- Track Rollers: 1 Top, 5 Bottom
- Shoes per Track: 30
- Track Width x Lth: 11" x 62"
- Ground pressure: 6.5 PSI
- Service Refill capacity
- Fuel Tank: 28 Gal
- Hydraulic System: 20 gal
- Crankcase: 12 Qt (approx. - start checking after 10)
- Frame
- 1/2 " high tensile steel, unitized with full belly pan, hardened steel pins and bushings, designed for heavy dozer services, rock guards AR plate
- Specifications
- Width: 48"
- Length (with blade & rippers): 13`1"
- Height: 6`8"
- Ground Clearance: 8"
- Gross Weight (With blade & rippers): 9000 lbs
- Travel Speed: 0-5 MPH
- Max Blade Lift: 24"
- Max Blade Drop: 24"
- Max Blade Angle: 30 degrees
- Max Blade Tilt: 25 degrees
- HVAC Cab (optional)
- Electronic Steering (optional)
- Others (see price list)
- Seat Belt
- ROPS (OSHA certified)
- Control panel warning lights
- Vandal protection kit
- Single digital gauge showing Tach/Hourmeter, Fuel, Oil, Water Temp, Volts, etc. readings
- Rock Guards
- Cold Weather Starting
- Heavy-Duty Engine Cooling System
- Safety Brake
- Limb Risers
- Draw Bar
- 3-point: Rippers, 3 shank, Float
- Foot & Arm Rests
- Brass Wear Plates
- 6 Way Blade with Lift & Tilt Float
- Dry Cell Battery
- Hydraulic Fluid level/temp gauge
- Auxiliary Hydraulics
- Side Brush Screens
- Hydraulic Oil Cooler
- Tie Down Hooks (set of 4)
- Powder Coat Finish
- Minimum 2" clearance between tracks and full length of trail dozer body for cleaning/maintenance
We are listed on the Federal Highway Administration Mechanized Trail Building web site
