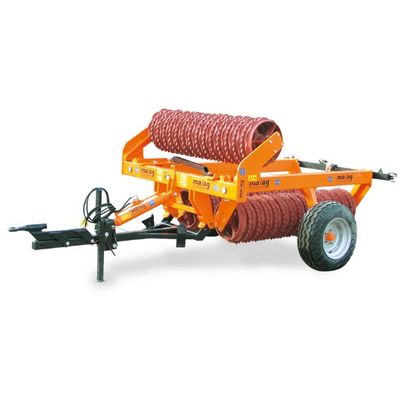

MA-AG - Model KI -Trailed Cast Iron Rollers

TRAILED CAST IRON ROLLERS (CAMBRIDGE) TYPE - Hydraulic folding frame into 3 sections.

Most popular related searches

Working width from 4,50 m to 5,30 m - Transport width 2,50 m. Homologated on series for towing transport on road.
Frame with hydraulic turnover into 3 sections.
Drive with n.1 hydraulic cylinder double effect jack with stop valve.
Cast iron discs diam. 480 mm or 530 mm.
Supports with bearing and greaser, shaft diam. 50 mm.
Wheels type 10.0/75-15.3 - 5 holes hub.
Rear light bar kit.

Standard Equipment
