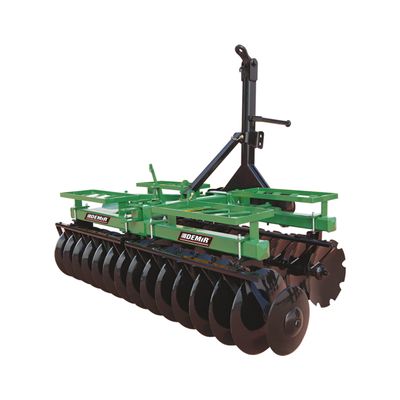

DEMIR - Model DHD - Trailed - Mounted Disc Harrow
V type trailed and mounted offset disc harrows are a kind of soil cultivation machine which is used to prepare seed bed by breaking the clods after the pulley and mixing the soil. Operations such as dissecting the plant residues and weeds and breaking the duff layer may be performed with V type lowed and loop offset disc harrows. The most significant superiority from secondary soil cultivation machines is being usable within wide humidity limits of the soil.Most popular related searches
disc harrow
soil cultivation machine
offset disc harrow
trailed disc harrow
cultivation machine
soil cultivation
harrow
mounted harrow
seed bed
seed bedding
Model DHD 24 DHD 28 DHD 32 DHD 36
Number of Disc 24 pcs 28 pcs 32 pcs 36 pcs
Working Width 2000mm 2350mm 2700mm 2700mm
Disc Diameter 510mm 510mm 510mm 510mm
Disc Row Distance 175 mm 175 mm 175 mm 175 mm
Required Power 50-60 hp 60-70 hp 70-80 hp 80-90 hp
Weight 700 kg 775 kg 850 kg 925 kg
