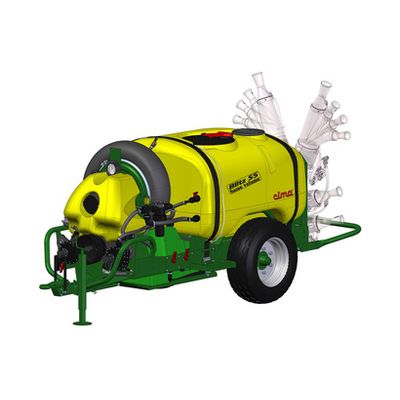

Cima - Model Blitz 55 -Trailed Sprayer
FromCIMA S.p.A.
The trailed low volume sprayer model Blitz 55, with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water. With its strong structure and high performance, this model guarantees a very good production on large vineyard and orchard crop extensions. Maximum performance with low operating costs and low maintenance.
Most popular related searches
- 1000-1500 and 2000lt. main tank in polyethylene equipped with gratuated level indicator
- Polyethylene spray-line rinsing tank placed below the main tank (gives the machine an excellent stability)
- 30lt. hand-washing tank
- Hydraulic pre-mixer incorporated within the basket filter
- Two agitation systems, liquid and air
- C.I.M.A.`S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance.
- CIMA additional agitation pump (no diaphrams or valves) made of anticorrosive material, standard supplied on the 1500/2000 lt.tank models.
- Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm)
- Spraying ON/OFF control by remote control electro-valves from tractor seat
- Rotating calibration discs, 15 positions - delivery from 100 to 5000 l/h
- Steel high pressure radial fan with fan disengagement, polyethylene fan housing
- Poly-V belt drive with automatic tensioner.
- Overrunning clutch – safety stop device in the event the PTO is suddenly stopped
- Steel frame, trail- eye drawbar adjustable in lenght and height, electrostatic painted with polyester powder.
- Wheel-hubs adjustable in width and height, electrostatic painted with polyester powder
