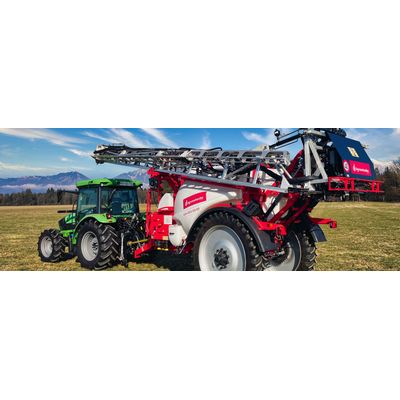

Agromehanika - Model AGS 3600 - 4200 HP - Trailed Sprayers

• Air Brakes
• Turning Axle
• Chassis Suspension
• Sprayer Operation Zone
• Spraying Booms
• Control Units

SYSTEM OF TWO PUMPS
The AGS 3600 – 4200 sprayer is equipped with a system of two piston diaphragm pumps of reputable brands. The first pump, generating a flow of 260 l/min, is used for spraying and the other one with a flow of 150 l/min is used for mixing the spraying agent. The latter enables pressure adjustment for adjusting the mixing intensity, which is very important when liquid fertilizers are used.

ACTIVE MIXING
This prevents the build-up of sediment from powder-based sprays at the bottom of the tank.

Mixing is done by means of the injection nozzle and an independent piston diaphragm pump delivering a flow rate of 150 l/min.

FILLING CONTAINER
Its advantages are especially revealed when using less soluble powdered spraying agents. The filling container was designed for an efficient preparation and mixing of chemical products. Thanks to the Venturi effect, the spray is easily pumped into the main tank. It provides additional safety when handling chemical products. The filling container also includes a packaging rinser for cleaning the containers of plant protection products, which contains a tip that penetrates the protective film. A convenient mechanism is provided to lower the container to a comfortable height during use.

EXTERNAL FILLING
The sprayer features an external tank filling system for hydrant filling. The system can be used for filling the main tank and the rinsing tank.

The main tank is additionally protected with a non-return valve that prevents the spray from spilling from the tank during filling.

CHASSIS
The robust and durable chassis is the result of our extensive experience. Double layer of powder coating ensures the best anti-corrosion protection. The wheel track is continuously adjustable so it can be easily adjusted to different types of crops. All HP sprayers are equipped with mudguards. The chassis also includes a hydraulic support foot for easier connection to the tractor. Using different hitch eyes, the chassis can be connected to the lower or upper tractor hitch.

MAIN TANK
They are made from high-quality LDPE. They feature a compact design and excellent mechanical and chemical resistance properties. Their attractive design gives the sprayer its distinctive character. The main tank is available in 3600 and 4200 litre versions. It is designed to provide thorough mixing, minimise residual spray volume and simplify cleaning operations. The sprayers include two additional tanks for washing the circuit and hands.

RINSING TANK
It is intended for rinsing the main tank and other elements when spraying is finished or interrupted.

The rinsing tank is integrated in the main tank. It can only be filled with clean water. The capacity of the tank is 420l.

HAND-WASH TANK
It is designed for washing your hands after handling spraying agents. It can only be filled with clean water. The capacity of the tank is 20 l.

Carefully structured with an emphasis on design and useful solutions, these sprayers enable safe and, above all, effective operation on large surfaces. The sectional valve system ensures immediate start of spraying and provides for an even distribution across the entire surface. The parallelogram hitch enables high or low spraying mode which helps to reduce the spray drift. The turning axle improves wheel tracking and protects the crops from trampling. The sprayer can be fitted with air springs that make driving feel more comfortable and with advanced electronic systems that allow automatic boom levelling, automatic adjustment and automatic closing of nozzle sections, as well as automatic wheel turning.

• Tank: 3600 - 4200 l
• Boom sets: 21-24HPX and 27-28-30 TR4 boom sets
