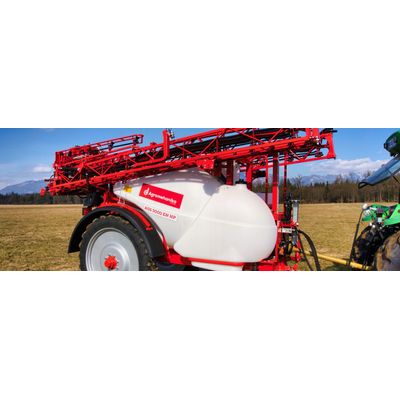

Agromehanika - Model 2500 - 3000 HP X -Trailed Sprayers
AGS 2500−3000 HP X is a new line of sprayers designed according to the latest technological standards. These sprayers are distinguished by easy operation, quality workmanship and a wide range of standard equipment.
Featuring remarkable efficiency and excellent quality, the AGS 2500/3000 EN HP sprayer has been upgraded to a completely new X series.
In addition to the circulation regulation system, enabling an even application of spray across the entire field, the remodelled and structurally more advanced sprayer offers single-sided opening of the boom set for extra manoeuvrability and an even better adaptability to field conditions.
The sprayer is controlled entirely from the tractor cab, using an electro-hydraulic manifold and a spraying computer to ensure accurate operation and, above all, the operator’s safety.
- Tanks with a capacity of 2500 and 3000 l
- HP hydraulic boom sets of 18 and 21 m
CHASSIS
The sprayer features a chassis made from high-quality steel to ensure a long service life. The rigid tow-bar provides the option of different tractor hitch systems. It features an adjustable wheel track, allowing the sprayer to be adapted to specific user requirements. The entire chassis is protected with a modern double-powder coating system.
The chassis features:
- rigid tow-bar,
- 270/95 R44 wheels with adjustable width,
- height-adjustable support leg,
- parking wedges.
MAIN TANK
Capacities of 2500 and 3000 l are available. Modern design with rounded edges, smooth interior walls and inclined bottom ensures complete drainage and efficient cleaning.
The tank is made of high quality polyethylene, enabling a compact construction and resistance to chemicals.
RINSING TANK
It is intended for rinsing the main tank and other elements when spraying is finished or interrupted.
The rinsing tank is integrated in the main tank. It can only be filled with clean water. The capacity of the tank is 300 l.
HAND-WASH TANK
It is designed for washing your hands after handling spraying agents. It can only be filled with clean water. The capacity of the tank is 20 l.
