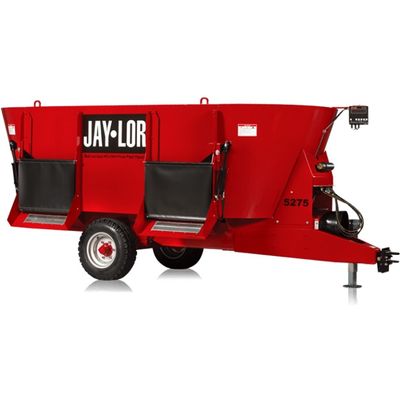

Jaylor - Model 5275 - Trailer for Vertical Mini Total Mix Ration (TMR) Mixers

FromJaylor International

SHARE

A mini mixer that can process 4×5 bales. On smaller operations, or when feeding specialty groups, such as weaned calves or dry cows, the Mini Mixer Series fits perfectly. With a Horsepower requirement of only 45HP, the 5275 has the lowest horsepower requirement of any vertical TMR Mixer in its class. We attribute this low horsepower requirement to the unique design of the slide plate on our patented auger.

Most popular related searches

vertical TMR mixer

total mix ration

Patented Square Auger
Mix Viewing Window
Planetary Drive System
Planetary Gearbox
Welded Mixing Chamber
3 Point Weigh System
Heavy Duty Adjustable Cast Hitch
Twin Square Cut Augers
#6 PTO 6 Spline
Restrictor Blades
18 PLY Tires

Plastic Extension
Discharge Conveyor Safety Chains
STAD 04 PLUS² Indicator Upgrade
WIN SCALE² Indicator Upgrade
TOP SCALE IC Indicator Upgrade
Cab Remote Display
Weight Repeater Remote Display
Alphanumeric Remote Display
Dina-Tel 2 for Full display
Wi-Net Modem
P2P Major Functions Remote
Software For Mixer & Feeding Management

Sloped top Square-Cut Auger
Structurally Reinforced Frame
3-Point Weigh System with DG500 Indicator
Planetary Gearbox
Mix Viewing Window
Central Grease Bank
Tungsten Carbide Coated Knives
Heavy Duty Adjustable Cast Hitch
Dual Restrictor Blades
Ultra-Low Loading Height

Capacity No Extension: 300ft³ | 8.5m³
Capacity 12" Extension: 375ft³ | 10.6m³
Weight: 6800lbs | 3100kg
Height: 83in | 2.1m*
Length: 212in | 5.4m
Drum Width: 76.5in | 1.9m
Pto Speed: 540 RPM
Minimum Hp: 45 HP
Auger Speed: 41 RPM
Number of Knives: 16
Auger Flighting Thickness: 1/2in | 13mm
Max Discharge Height: 33in | 84cm
Door Opening Width: 25in | 64cm
Floor Thickness: 1/2in | 13mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 10.0/75 – 15.3 18 PLY (2)
Wheel Assembly: Single Straight Axle
Scale System: DG500
