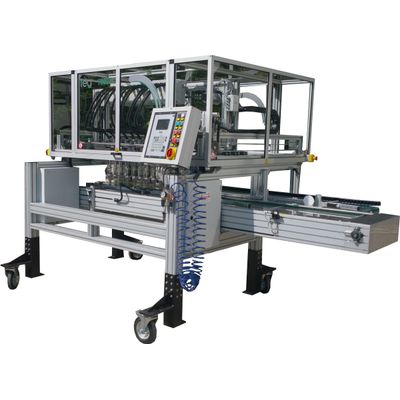

TEA Hamilton - Model Cube1500 and Cube 2000 - Transplanters
The TEA Cube1500 and Cube 2000 Series transplanters are engineered for medium to large-scale agricultural operations, offering advanced solutions for efficient plant transplantation. Featuring precise pickup heads that align seamlessly with conveyor belts, these machines are ideal for handling various tray dimensions, programmable through an integrated computer system capable of storing up to 99 placement programs. With options for up to 12 and 16 transplanting heads, respectively, the Cube1500 and Cube2000 can process 1000 to 1200 plants per hour per head. Operational flexibility is enhanced with adjustable parameters such as speed and planting depth, even during active operation. These models require an 8 Bar compressed air connection and offer a digital interface through a USB flash drive for convenient backups and updates. The Cube1500 accommodates trays up to 40 x 60 cm, whereas the Cube2000 manages multiple trays simultaneously, optimizing space and productivity. Hamilton Applied Electronic Technology backs these robust machines, suitable for a wide variety of agricultural applications.
The TEA Transplanter models are designed to cater to the needs of medium and larger growers with efficiency in mind.
Featuring pickup heads aligned with the conveyor belt, these models offer robust and precise performance. You can effortlessly program the machine for various tray dimensions by inputting the details into the computer’s memory, with the ability to store up to 99 pickup and placing programs.
The memory can be instantly accessed with the press of a button. This machine is self-managing and can simultaneously handle multiple trays. If the placing tray doesn’t utilize all fingers, the computer alerts you and parks the redundant heads.
You can easily fine-tune operating parameters such as speed, planting depth, and more while the machine is running.
The individually motorized gripping heads come in two sizes, and depending on your application, each head can handle approximately 1000-1200 plants per hour. Plus, we provide a USB flash drive for backups and software updates, and a compressed air connection is necessary for operation. Elevate your growing operations with our versatile and efficient models.
- up to 12 transplanting heads
- max. output: 1000 – 1200 plants/hour per head
- pickup from 1 or 2 plug-trays
- placing into 1 or 2 trays at one time
- tray size: max 40 x 60 cm
- dimensions: cm 220 x 320 x h 220
- weight 700 Kg
- power consumption: 1 Kw / hour
- voltage: 220 Volt or 110 Volt
- air pressure: 8 Barr – 80 l/min
- up to 16 transplanting heads
- max. output: 1000 plants/hour per head
- pickup from a maximum of 3 traysplacing into maximum 3 trays at the same time
- tray size: max 40 x 60 cm
- dimensions: cm 226 x 420 x h 220
- weight 750 Kg
- power consumption: 1 Kw / hour
- voltage: 220 Volt or 110 Volt
- air pressure: 8 Bar – 80 l/min
