Grays - Transport Boxes

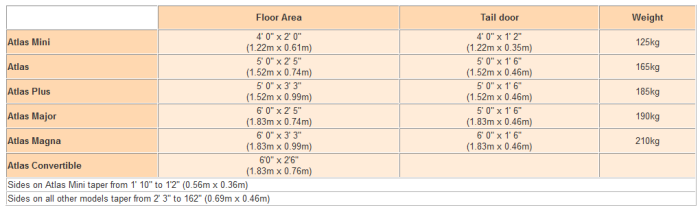

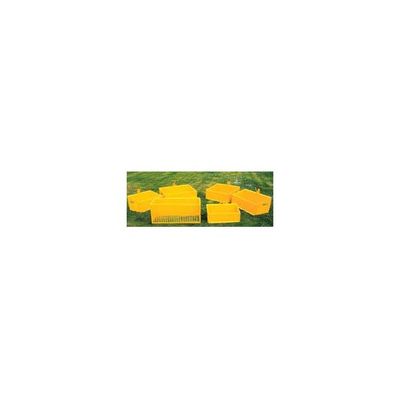

Manufactured in five sizes, each Grays "Atlas" transport box can be supplied with or without a trip mechanism, and in addition to their primary purpose of small load handling they can also serve as ballast boxes to provide additional traction on the rear wheels of the tractor under difficult conditions.
Each box has a lead-in scraper edge along the rear, allowing it to be used as a useful bucket/shovel for clearing up the yard. grays "Atlas" transport boxes are in constant use in and around farms of every description.The tail door on Grays "Atlas" transport boxes pivots from the bottom, and is fully removable. support chains are provided so that the door can be held in a horizontal position, thereby greatly increasing the floor area when carrying bulkier loads.
(The door can be suspended on these chains at any angle according to requirements).A lead-in scraper edge is fitted as standard along the rear of the box. With the tail removed, this allows the box to be used as a bucket/shovel for clearing up the yard. Each box can be supplied with or without a trip mechanism.
ATLAS CONVERTIBLE
Hinged livestock/general purpose box. Inside floor dimensions 6`0" x 2` 6" (1.83 x 0.76m). Hinged top section gives a back height of 5` 3" (1.57m), ideal for carrying bales or sacks. With the hinged section down, sides are 2` 7" (0.79m) high. Bars are 3 ½" (9cm) apart. Wooden floor to prevent animals` hooves slipping. This is non-tip. Both category 1 and 2 linkage provided.
Grays Atlas range are solid in construction with reinforcing lips along the edges, and diagonal cross-bearers. They are extremely robust and are a real long term investment.
