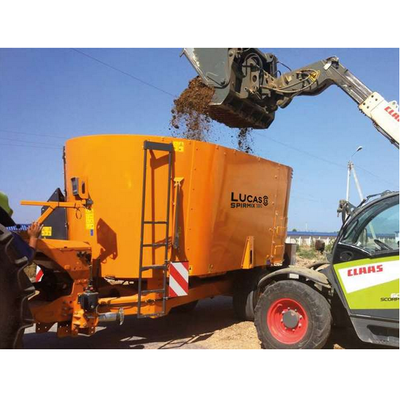

Lucas - Model Spirmix 16 -28 - Trap Door Vertical Auger Diet Feeder
The Spirmix Trap Door range of twin auger diet feeders consists of 8 models from 16 – 28 m3. These mixer wagons are equipped with a distribution conveyor left and right and 2 vertical augers that aerate and stir the mix and can feed a herd of 85 to 170 head in one pass.
The range of twin auger mixers is available in 8 models based on 2 different designs, Spirmix 16 to 18 m3 and Spirmix 20 to 28 m3. The capacities can be increased by a simple set of extensions. Our objective is to offer compact machines with a consistent overall height that can be upgraded over time. These mixers are equipped with a distribution door that is perfectly suited to rations consisting mainly of silage. As standard, the distribution door (70 x 100 cm) is on the right side, but in order to adapt to the different building configurations, t is possible to personalize the feeder with other distribution options.
- SMOOTH ROLLED TANK
- A STEPPED AUGER TO ENSURE AN AERATED MIXTURE
- RELIABLE KINEMATIC
- TANK BOTTOM REINFORCEMENT
- COMPLETE WEIGHING SYSTEM
- HYDRAULIC CUT-OFF PLATES
- Front right feeding trap door
- 2 Mixing augers equipped with 6 reversible tungsten carbide knives height 1100 mm
- In version 26 & 28 m3 8 knives with auger extension +30 cm
- 2 Manual cut-off plates
- Not programmable weighing box X 400
- Two-speed gearbox
- The standard machine uses 1 hydraulic function
