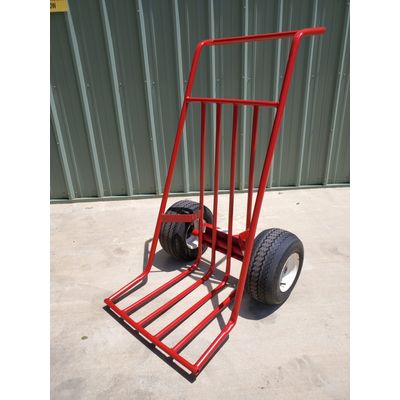

Ellis - Model TD4 - Tree Dolly Hand Truck
This Hand Truck is ideal for landscapers needing to move trees, planters, rocks and large shrubs. Capable of carrying just about anything with a maximum weight capacity of 2000 lbs. Features a 1-1/4″ cold rolled machined axle to accommodate 2000 lb highway hubs that will accept golf cart wheels. Wheels installed are heavy duty used 18x850x8. Built from 1″ pipe frame, and 3/4″ pipe struts, then powder coated in a beautiful International Red. The Dolly is only 36″ wide and weighs 116 lbs. Total height is 60″.
Most popular related searches
- Weight(lbs.): 116
- Load Capacity (lbs.): 2,000
- Height (in.): 60″
- Outside Tire Width (in.): 36
- Toe Plate Depth (in.): 24.5
- Toe Plate Width (in.): 28.75
- Tire Type: Pneumatic wheel
- Tire Size H x W (in.): 18 x 850-8
- Material Type : Steel
- Overall Dimensions L x W x H (in.) 46 1/4 x 36 x 58 5/8
- Shipping Weight (lbs.) 160
- Ships: Fully Assembled, Freight truck
- Orange Line:28.75″
- Blue Line:24.5″
- Green Line:19″
- Purple Line:42.75″
- Floor to top of handle:60″
- Weight: 116 lbs
Measurements are nominal, could vary slightly (±0.25″). The green line is inside of the tire to inside of the tire.
