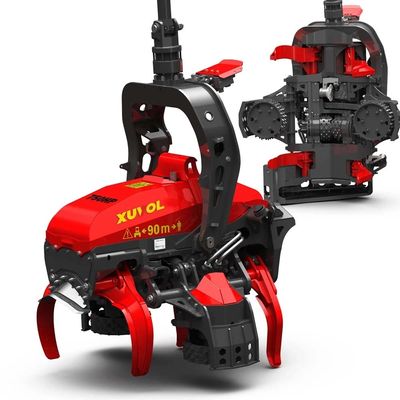

Xuvol - Model XVF-750HP -Tree Harvester Head

Although small in size, it is a powerful logging machine head designed specifically for thinning and small trees; Design based on usability, durability, performance, economy, etc; This model is suitable for multi path logging, with a maximum logging diameter of 750mm; Computer board control, freely adjustable cutting length, more precise segmented cutting; Automatic feeding, automatic branch removal, handling in case of blockage, flow self escape, and chain saw automatic tensioning operation make it easier and more efficient; Adopting XUVOL independently developed forest wolf logging control system, the operation is more in line with the actual logging needs and user operating habits, with targeted design, optimal host matching, high logging efficiency, low fuel consumption, simple maintenance, and economical component prices.

• Weight: 2100士20 kg
• Length: 1845±50 mm
• Width: 1734mm
• Max Cutting Diameter: 750±10 mm
• Chain Speed: 50±5 m/s
• Minimum Clamping Diameter: 90+5 mm
• Clamp Tip To Tip: 466±10 mm
• Saw Bar: 820 mm
• Feed System: 2 rollers
• Auxiliary Feeding : 2 roller
• Feeding Speed: 0～6±1 m/s
• Feeding Motor/arms: 820ml/r
• Feed Power: 37 KN
• Num of Knives: 4+1+1
• Work pressure: 250-320 L/min
• Work Pressure: 30 MPa
• Match excavator model: 25-30 Ton
