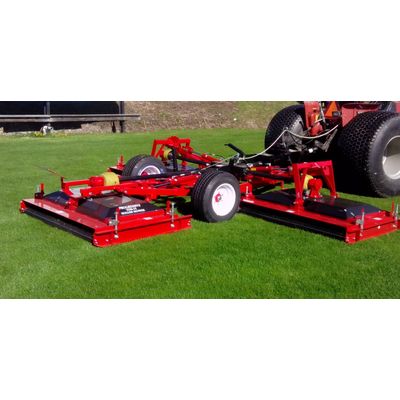

Progressive - Model TDR-15 - Tri-Deck Roller Finishing Mower
Progressive’s 15½ foot TDR-15 Tri-Deck Roller finishing roller mower is an ideal choice for Natural Grass Producers in either wet or dry conditions. This versatile mower can cut as low as ½ inch. The full width rollers can promote root-to-soil contact, aid plant health and help moisture retention. The superior quality cut comes from high lift rotary blades that create enough vacuum to lift the grass for a clean uniform cut and then disperse the clippings evenly over the rollers. Easy access to height adjusters makes setting the height of cut quick and precise.
- Cutting Width: 15' 6"
- Cut Height Range: 1/2" to 4"
- Recommended PTO H.P.: 30 to 50
Rear rollers also provide extra protection for the discharge of clippings and debris. Progressive’s exclusive Pro Lift-N-Turn™ is standard equipment — this allows the decks to be temporarily lifted slightly off the ground with the PTO still engaged and without fear of driveline damage while turning. The TDR-15 is another example of the ingenuity and quality that goes into producing a durable and productive rotary finishing mower that is easy to maintain. The TDR-15 not only provides versatility of use and quality of construction, it is “The Better Built Choice”.
Pro Lift-N-Turn™ :
An industry exclusive feature – not found on other wide-area mowers! Pro Lift-N turn™ allows the decks to be raised slightly off the ground with the PTO still engaged.
Easy change height adjustment:
Progressive’s height indicator is plasma cut metal so the 1/8” height indicators are easy to see regardless of the light conditions. The 1” diameter Acme thread screw is plated and greaseable to provide years of trouble free use. 5 turns changes the HOC 1 inch. A carriage bolt is used for clamping which can be easily replaced if it ever becomes necessary.
Quality of Cut and Striping:
TDR-15’s high tip speed blades provide superior cut quality while heavy duty rollers produce bold recognizable stripes.
Worry Free Maintenance:
Maintenance free blade spindles, and PTO Shafts requiring lengthy intervals between greasing, reduces maintenance but provides you with the same reassurance of performing daily maintenance.
PTO Connection:
The Constant Velocity (CV) input PTO and auto-lock PTO coupler makes connecting the mower to a tractor easier while providing extra protection to the driveline by minimizing vibration when turning.
- Part Number: 528750B (North America) / 528750D (Worldwide)
- Recommended PTO H.P.: 30 to 50
- Mowing Capacity: * (Assumes no overlap or turning)
- 2 mph 3.75 acres per hour *
- 4 mph 7.5 acres per hour *
- 6 mph 11.3 acres per hour *
- Cut Height Range: 1/2 to 4"
- Cutting Width: 15' 6"
- Transport Width: 97"
- Transport Tires: P275 / 60 R15 Automotive Radials
- Transport Height: 7' 10"
- Weight: 3725 lbs
- Std. Equipment:
- Heavy-duty construction, open rear-discharge, easy cutting height adjustment.
- Heavy-duty 6” dia. rollers supported by 2 - 1.25” ductile flange HEX bearings.
- Maintenance free blade spindle assemblies for reduced maintenance.
- All decks turn the same direction for control of discharge
- High lift blades for superior cut. Tip speed 18,287 FPM.
- Transport tires P275/60 SR15.
- CV shaft input system for easy connection to any tractor
- Opt. Equipment:
- 528153 Fender kit (both sides), with provision to mount lights
- 522603 High Lift Blade Kit (replacement set of 9 fixed black blades)
