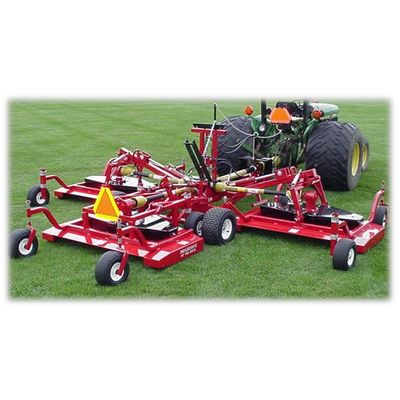

Progressive - Model TD65 -Tri-Deck Rotary Finishing Mower
The Progressive TD65 is a Tri-Deck rotary finishing mower providing a 15.5 foot cut. The TD65 is both operator and maintenance friendly and it has become the choice of sod professionals for mid-size operations for many years. The three independent floating decks are mounted on a robust transport frame. These decks conform to and follow most undulations and other ground conditions. By using your 30-50 H.P. tractor the TD65 can mow up to 90 acres in an eight hour day. Field proven, Maintenance Free Blade Spindles offer peace of mind and lower cost of operation. The superior cut is the result of our deck design.
- CUTTING WIDTH: 15' 6"
- CUT HEIGHT RANGE: 1" to 5"
- RECOMMENDED PTO H.P.: 30 to 50
High lift rotary blades create enough vacuum to lift the grass for a smooth, even cut and then disperse the clippings evenly through the rear discharge system which is unique and an integral part of the deck design. The result is a superior after cut appearance. Only minutes are required to change cutting heights from 1” to 5” without the use of tools. In addition, all operating functions for transport and mowing positions are activated from the tractor seat. The TD65 is another example of the ingenuity and quality that goes into producing a durable, reliable, rotary finishing mower that is easy to maintain. The TD65 is not only of superior quality, providing a superior cut, it is “The Better Built Choice”
Maintenance Free Blade Spindles:
Developed and tested over several years, Progressive is pleased to introduce maintenance free blade spindle assemblies
3/16" Steel Deck :
The TD65 is designed with deep skirt decks that are formed and welded, with bracing at high stress areas, to provide maximum structural strength.
Cut Height- Easy to Adjust:
Progressive makes it easy for the user to change the Height of Cut (HOC) easy and safely. Adjustment is made using a combination of 3/8″ and 1″ spacers to achieve the 1″ to 5″ HOC cut range.
Excellent Floatation:
The design of the decks of the TD65 is easy on the turf. A very high tip speed provides a high cut quality and leaves a superior finish.
- Part Number: 526515B (North America) 526515D (Worldwide)
- Recommended PTO H.P.: 30 to 50
- Mowing Capacity: * (Assumes no overlap or turning)
- 2 mph 3.7 acres per hour *
- 4 mph 7.5 acres per hour *
- 6 mph 11.3 acres per hour *
- Cut Height Range: 1" to 5" in 3/8 steps
- Cutting Width: 15' 6"
- Turning Radius: Zero Turn
- Transport Width: 8' 6"
- Transport Tires: 18 X 9.50 X 8 NHS, 6 ply, Turf Saver Tires
- Transport Height: 7' 6"
- Weight: 2720 lbs
- Transport Length: 14'
- Std. Equipment:
- Heavy-duty construction, open rear-discharge, easy cutting height adjustment.
- Heavy-duty gauge wheel tires with tapered roller bearings.
- Maintenance free blade spindle assemblies for reduced maintenance.
- High lift blades for superior cut.
- Tip speed 18,287 FPM.
- Anti-Scalp Rollers, twelve in total.
- CV Shaft Input System for easy connection to any tractor
- Opt. Equipment:
- 522311 Heavy Duty Transport Tires (in lieu of standard tire factory installed)
- 521811 Spare - Heavy Duty Transport Tire (20.5 x 8 -4 ply) (must order 2 if replacing standard tire – requires corner pin p/n 526472)
- 522603 High Lift Blade Kit (replacement set of 9 fixed black blades)
- 522606 Low Lift Blade Kit (replacement set of 9 fixed blades)
- 522507 Mulching Kit – (Requires 522611 Mulch Blade Kit) not installed
- 522611 Mulch Blade Kit (set of 9 blades)
