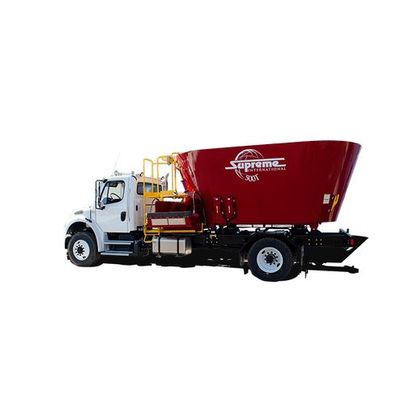

Supreme - Model 500T -Truck Mount Processors
The 500T Mechanical Truck Mount has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 480 ft³ (13.6 m³) or 561 ft³ (15.9 m³) with tub extension, and requires 210 horse power (157 kW). Supreme Mechanical Truck Mount processors use a similar drive system to our mechanical pull types, and include features like HD 2 stage planetaries, AR200 walls, and our patented tub and auger design. The 500T model is also available as a pull type and a stationary mixer.
210 hp / 157 kW
Struck Capacity: 480 ft³ / 13.6 m³
Capacity with Extension: 561 ft³ / 15.9 m³
N/A
11,500 lbs / 5,216 kg
14,000 lbs / 6,350 kg
Height*: 82" / 208 cm
Height w/ 10" Extension*: 92" / 234 cm
Overall Width**: 99" / 251 cm
Overall Length**: 211" / 536 cm
*Height of truck frame to the top of the tub. Add to truck frame height for overall height.
**Overall width and length dependent on the style of truck, conveyor/discharge options ordered.
Two Heavy-Duty, Two-Stage Planetary Drives
N/A
8 Replaceable Forage Cutting Blades
8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender
3/4” / 19 mm M/S Floor
1/4” / 6 mm AR200 Walls
- Two Patented Freestanding Vertical Cutting Augers
- Manual Restrictor Plates
- 5/8” / 16 mm AR200 Auger Flighting
- Ultra Wear Kicker Plates
- Viewing Platform
- 4 pt Scale System
- Tub Mounted Weight Repeater
- Articulating Hitch
- Cab Display
- Heavy-Duty Tubular Steel Bolsters
- Independent Steel Oil Reservoirs
- Viewing Platform
