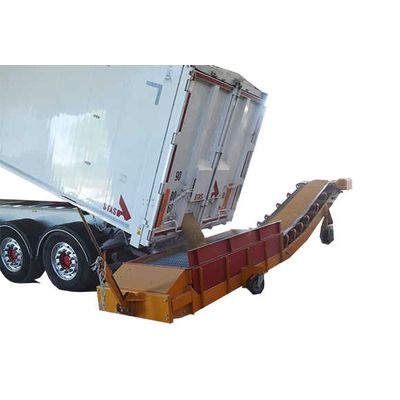

Sautec - Truck Unloader
The SAUTEC truck unloader was designed to optimize the unloading of articulated trucks and tipper trucks. It thus enables the direct loading of boats, barges and other forms of transport. It can be used to feed a grasshopper conveyor or another item of conveying equipment. Reliable and robust, our truck unloader enables the offloading of all types of bulk products: fertilizers, cereals, pellets, de-icing salt, aggregates, ground materials etc.
A wide range of truck unloaders
Depending upon the product transported, it is possible to opt for a painted steel or a stainless steel truck unloader.
Read more
A highly efficient truck unloader
This truck unloader version was designed to increase your productivity. Discover the high performance of our truck unloader.
- High throughput from 60 to 200 tons per hour
- Optimum slope height thanks to optimized clearance
- Robustness thanks to simplicity and quality of construction
- Painted steel or galvanized steel finish
- Closing the corner pieces to avoid any deposit
- Adjustable tilt with excellent stability by height adjustment by 2 hydraulic cylinders
- Geared motor with hollow shaft without loss of torque
- Three-phase plug socket with phase inverter
- Hoisting rings for safety during unloading
- Rubberized driven drum
- Drum with removable hubs
- Inner scraper with pressure adjustment
- Loading hopper with double sealing flaps
Maneuverability options
- 4 rear swivel wheels
- Pivot & swiveling front wheels
- Rear jockey wheel
- Geared motor on front wheel
- Security system with wheel lock
- Hydraulic drive system for lifting
- Remote control
Supply options
- Galvanized hood
- Chassis closure (bottom and sides)
- Round hopper 600mm
- Large hopper 2.7M
- Side risers with wood or steel sides
- Extensions with bibs
- Feed hopper 3mx3m or 10m3 with adjustable outlet hatch
Engine options
- 2m/s engine
- 2-speed electric motor or frequency converter, hydraulic or thermal possible
- Gimbal sleeve
- Brake motor
Product release options
- Gooseneck
- Cable or motorized chute
- 1.5M or 2M thrower
- Thrower
- Rotary counter brush
- Scraper
