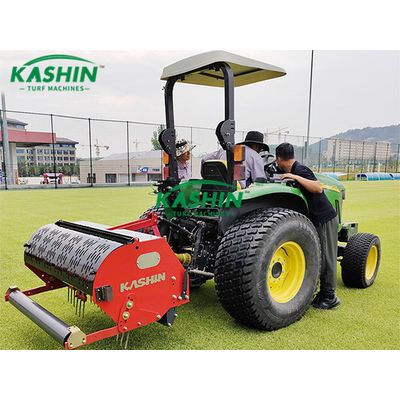

KASHIN - Model DK 120 -Turf Aercore
The KASHIN Turf Aercore is engineered to address compaction issues in sports and golf course turf. Designed with versatility in mind, it features a choice of tines that enhance both drainage and irrigation. The device can achieve a maximum depth of 25 cm using 12 mm, 19 mm tines, or mini-tines, making it suitable for summer aeration. It is lightweight, facilitating use on delicate surfaces such as golf greens, yet robust enough to penetrate compact soils. A 3-speed gearbox allows it to align with varying tractor speeds for precise hole spacing, eliminating the need for creep speed gears. The machine incorporates a unique adjustable parallelogram forced heave to fracture compacted ground under all conditions. Sealed bearings replace traditional bushings for extended lifespan, and the simple tine design permits easy and affordable replacements. Offering unobstructed play through its adaptable use, it can aerate at any time, ensuring higher turf quality.
DK 120 Turf Aercore helps alleviate waterlogging and deep aerates the ground to promote healthy growth. The ‘Turf Aercore’ de-compacts the soil on sports pitches by inserting equally spaced holes in the turf which allow water and air to filter through to the grassroots.
KASHIN Turf Equipment from Weifang, Shandong, China produces KASHIN Turf Hole Puncher.
This Turf Hole Puncher has a 3-speed gearbox, which will match up to virtually any tractor. The popular Turf Hole Puncher is an ideal machine for use on greens and most sports turf surfaces where limited access or horsepower is available.
One of the challenges that face the turf care professional is the battle against compaction. The KASHIN Turf Aercore has been specially designed with a wide choice of tines for aeration which assists both drainage and irrigation. It is also through these cavities that the plant develops and extends its roots system giving stronger and healthier turf.
KASHIN Turf Aercore, Hole Puncher is well suited to lower hp tractors where access is restricted or a lighter footprint is required. These highly productive machines are easily adjusted and work to a maximum depth of 25cm (10″) and use 12mm or 19mm (½” or ¾”) tines or mini-tines which are often used for Summer aeration.
KASHIN Turf Aercore, Hole Puncher is an efficient machine for use on sports fields and all areas of the golf course. This model is light enough for application on the golf greens, whilst strong enough for hard soils.
(a) Unique Adjustable Parallelogram Forced Heave
Shatters compaction in any ground conditions. Versatile with single-point adjustment for optimum results and hollow coring
(b) 3-Speed Gearbox
Matches your tractor’s ground speed exactly to achieve the desired hole spacing. Creep speed tractor gear not essential
(c) Sealed Bearings / Not Bushings
Long maintenance-free life
(d) Higher Working Speed
Greater working capacity
(e) Useable Playing Surface
Aerate at any time without interruption to play
(f) Simple Tine Design
Easy to change and cheap to replace
(g) 10” (250 mm) Penetration
Relief of compaction, removing any hardpan of at depth up to 10” (250 mm)
(h) 2.5” (65 mm) Spacing Between 0.5” (12 mm) Tines
High density of aeration
- Model : DK120
- Working width : 48″ (1.20m)
- Tractor Speed @ 500 Rev’s at PTO : –
- Spacing 2.5” (65 mm) : Up to 0.60 mph (1.00 kph)
- Spacing 4” (100 mm) : Up to 1.00 mph (1.50 kph)
- Spacing 6.5” (165 mm) : Up to 1.60 mph (2.50 kph)
- Hole Spacing Side-to-Side : 4” (100 mm) @ 0.75” (18 mm) holes
- 2.5” (65 mm) @ 0.50” (12 mm) holes
