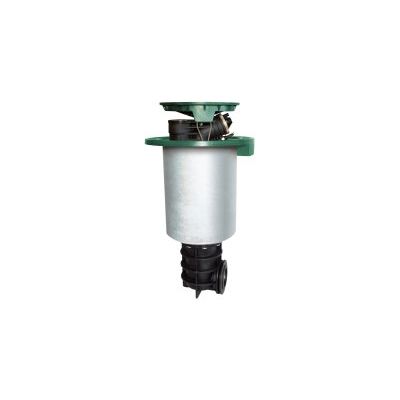

Mirage - Model M-160 -Turf Sprinklers
The M-160 has a 174 ft. (53,0 m), radius for cooling and cleaning synthetic sports fields or field hockey venues. Also useful for dust control and/or natural turf applications. Featuring precision German-engineered components allows this piston-driven sprinkler to apply water uniformly and quickly. It’s ideally suited for covering all or a portion of a sports field, on or behind the sidelines.
- Long radius
- Selectable radius and flow range
- Full or part circle (part circle 30°-360°)
- Block Style
Typical applications
Synthetic and natural turf sports fields
Precision German-engineered Piston Drive
Ensures consistent operation and long life
Variable flow and Radius Range
6 nozzles sizes to select 100-328 GPM and from 105-174` radius
Adjustable rotation Speed
From 100 to 240 seconds (for a full circle)
Stainless Valve Boxes
Developed for synthetic turf applications for faster installation and access without having to disturb the surrounding field or sub-base
Underhill’s Total Solution Kits
Underhill offers a wide range of PVC, ductile iron swing joints and/or swing joint kits. The Total Solution kits also include a corresponding stainless steel sprinkler box specific to this series sprinkler as well as sprinkler boxes for a single isolation valve or isolation valve and 3" sleeve valve.
- Valve Type: Block style only
- Arc Pattern: Full circle, Part Circle 30-360°
- Radius Range: 105-174 ft. (32,0-53,0 m)
- Flow: 100-328 Gpm (22.8-74.5 m³/hr.)
- Recommended Operating
- Pressure: 60-120 Psi
- Maximum Operating Pressure: 145 Psi
- Minimum Operating Pressure: 60 Psi
- Nozzle Sizes: 16, 18, 20, 22, 24 & 26mm
- Trajectory: 23°
- Inlet: 2-1/2” NPT (side inlet)
- Adjustable Speed Rotation
- Height: 100-240 seconds
- 23.7" (602mm)
- Pop-up Height: 2-3/4" (70mm)
- Lid Cover: 15.6" diameter (395mm)
Total Solution Kits
- M-160 Series Components: 300 Series Sleeve Valves
- 3” Isolation Valves
- Ductile Iron Swing Joints
- PVC Swing Joints
- Stainless Steel Valve Boxes
- Quick Couplers
- Quick Coupler Kits
